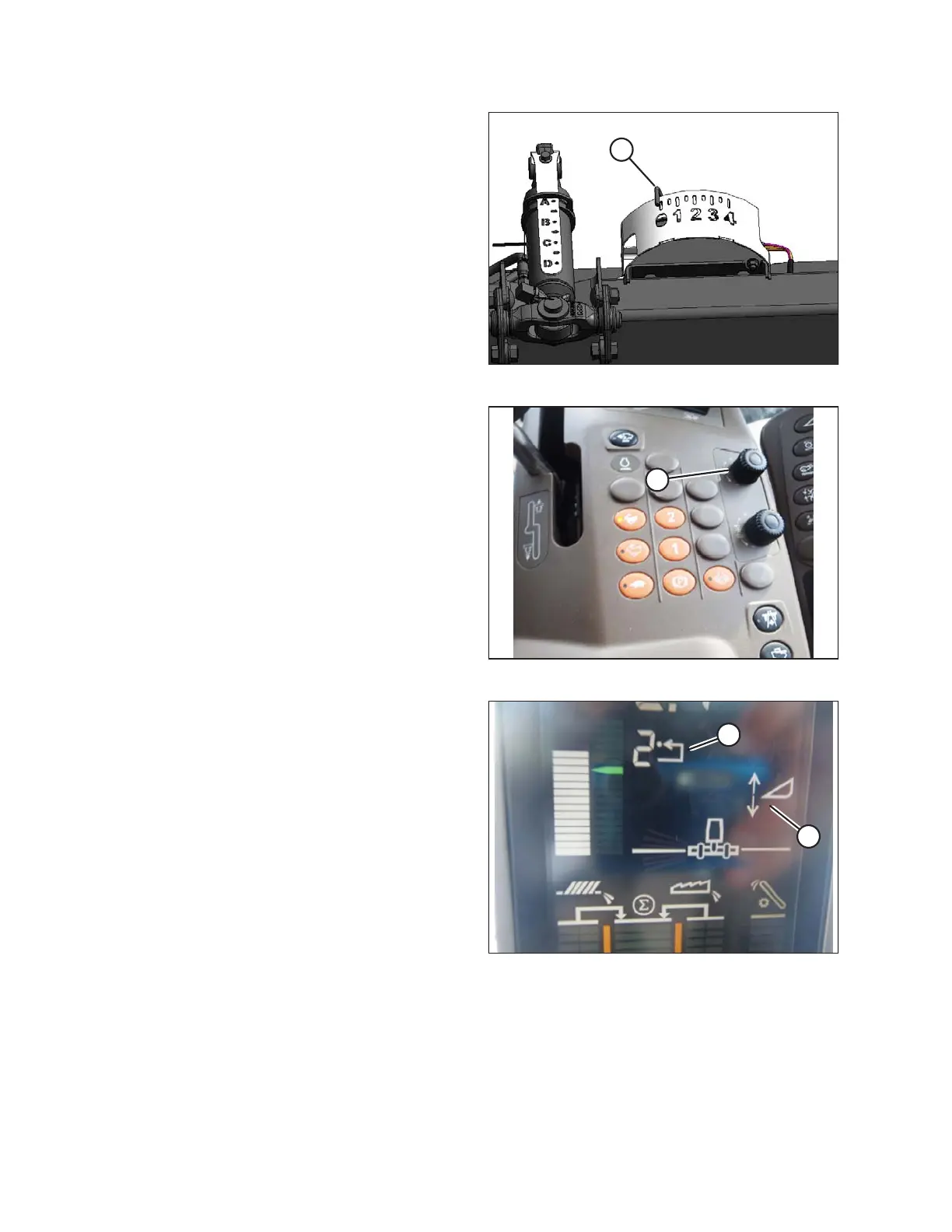

Figure 3.312: Float Indicator Box
NOTE:
The ideal ground pressure—in most cases—is one
number (on float indicator box) above header
suspended off ground. For example, if float indicator
needle (A) is positioned at 0 with header suspended off
ground, then ideal ground pressure will be achieved with
needle positioned at 1. Operating with heavier
pressures can wear cutterbar wearplate prematurely.
Figure 3.313: Combine Control Console
5. Use control knob (A) to scroll through different button
options.
Figure 3.314: Combine Display
NOTE:
When auto header height control (AHHC) is engaged,
AHHC icon (A) appears on monitor and number
indicating which button was pressed (B) is displayed on
the screen.
