214323 213 Revision A

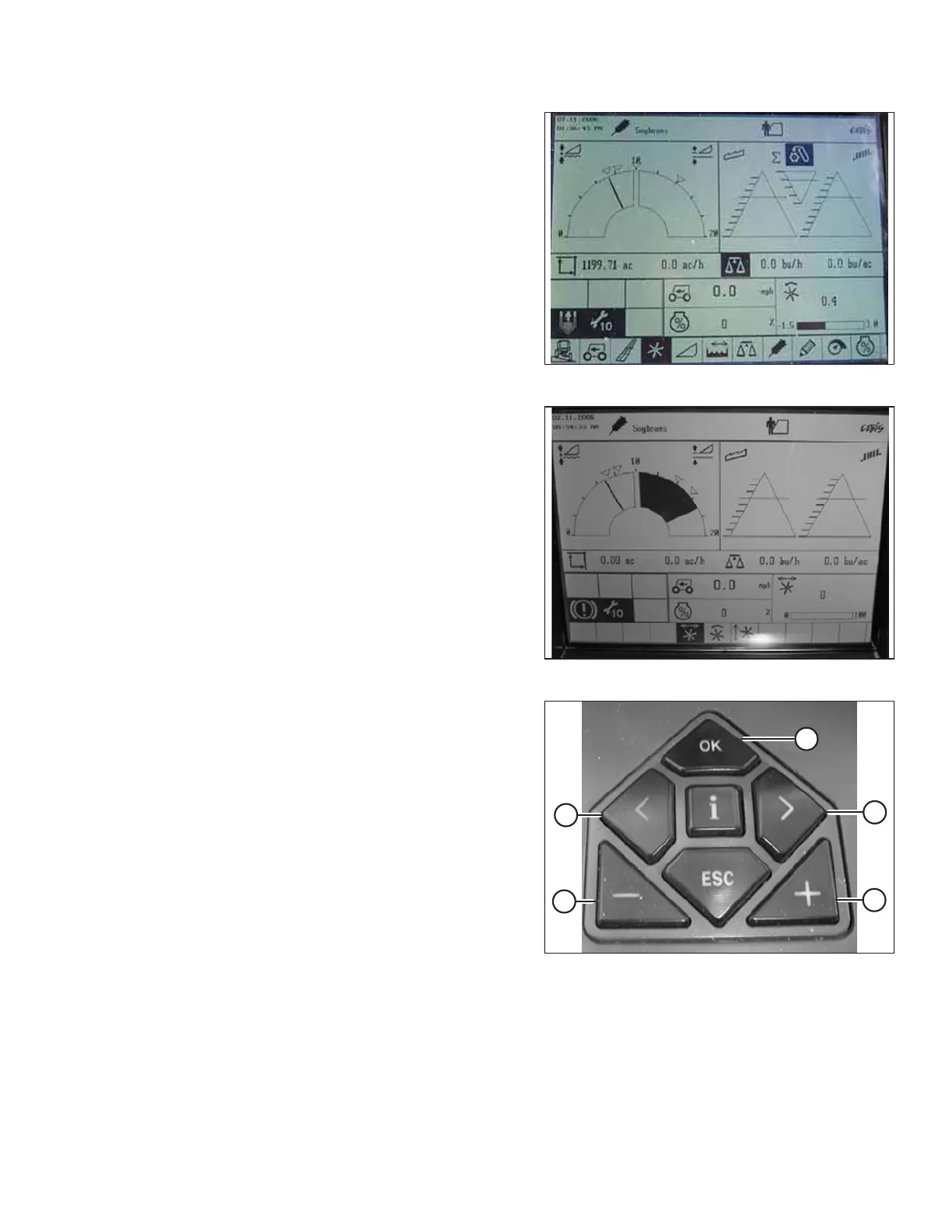

Figure 3.364: Combine Display
Figure 3.365: Combine Display
6. Use < or > key to select REEL WINDOW. When reel
window is selected, window E15 will display current
advance or retard speed of reel in relation to
ground speed.
Figure 3.366: Combine Controls
7. Press OK key (E), and use < key (C) or the > key (D) to
select REEL FORE AND AFT window.
8. Use – key (A) or + key (B) to set reel fore-aft position.
OPERATION
