214323 281 Revision A
1001479
B
A

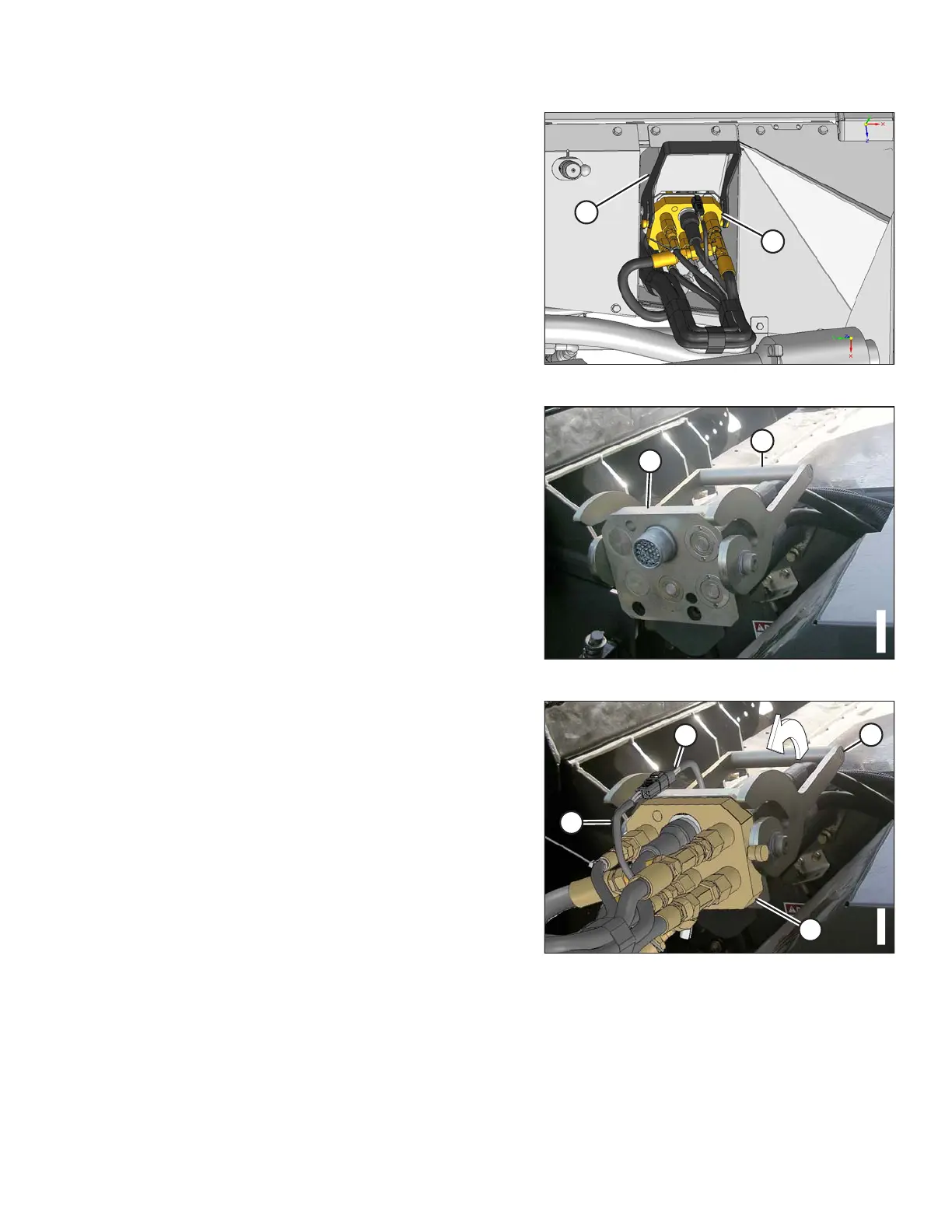

Figure 4.26: Adapter Multicoupler
9. Raise handle (A) to release multicoupler (B) from
adapter.
1001492
B
A
Figure 4.27: Combine Receptacle
10. Push handle (A) on combine to fully open position.
11. Clean mating surfaces of multicoupler (B) and
receptacle if necessary.
1001493
B
A
C
D
Figure 4.28: Multicoupler
12. Position multicoupler (A) onto combine receptacle, and
pull handle (B) to fully engage multicoupler into
receptacle.
13. Connect reel fore-aft/header tilt selector harness (C) to
combine harness (D).
HEADER ATTACHMENT/DETACHMENT
