214323 284 Revision A

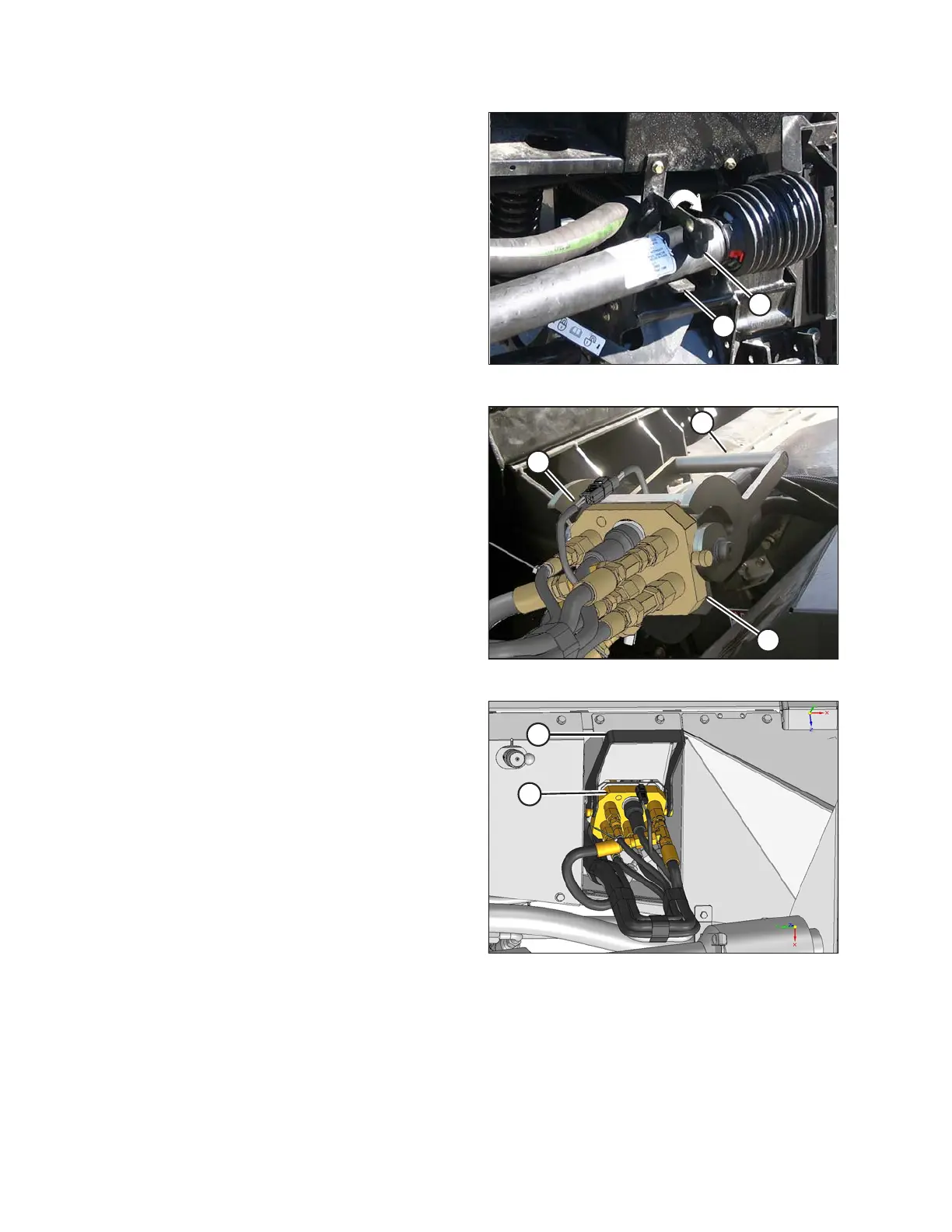

Figure 4.33: Driveline
5. Slide the driveline into the hook (A) until the disc (B)
drops securing the driveline in place.
Figure 4.34: Multicoupler
6. Disconnect the harness at the connector (A).
7. Move the handle (B) on the combine multicoupler to the
full open position to release the multicoupler (C) from
the combine.
Figure 4.35: Adapter Multicoupler
8. Raise the handle (A) on the adapter, and place the
multicoupler (B) on the adapter receptacle.
9. Lower the handle (A) to lock the multicoupler.
HEADER ATTACHMENT/DETACHMENT
