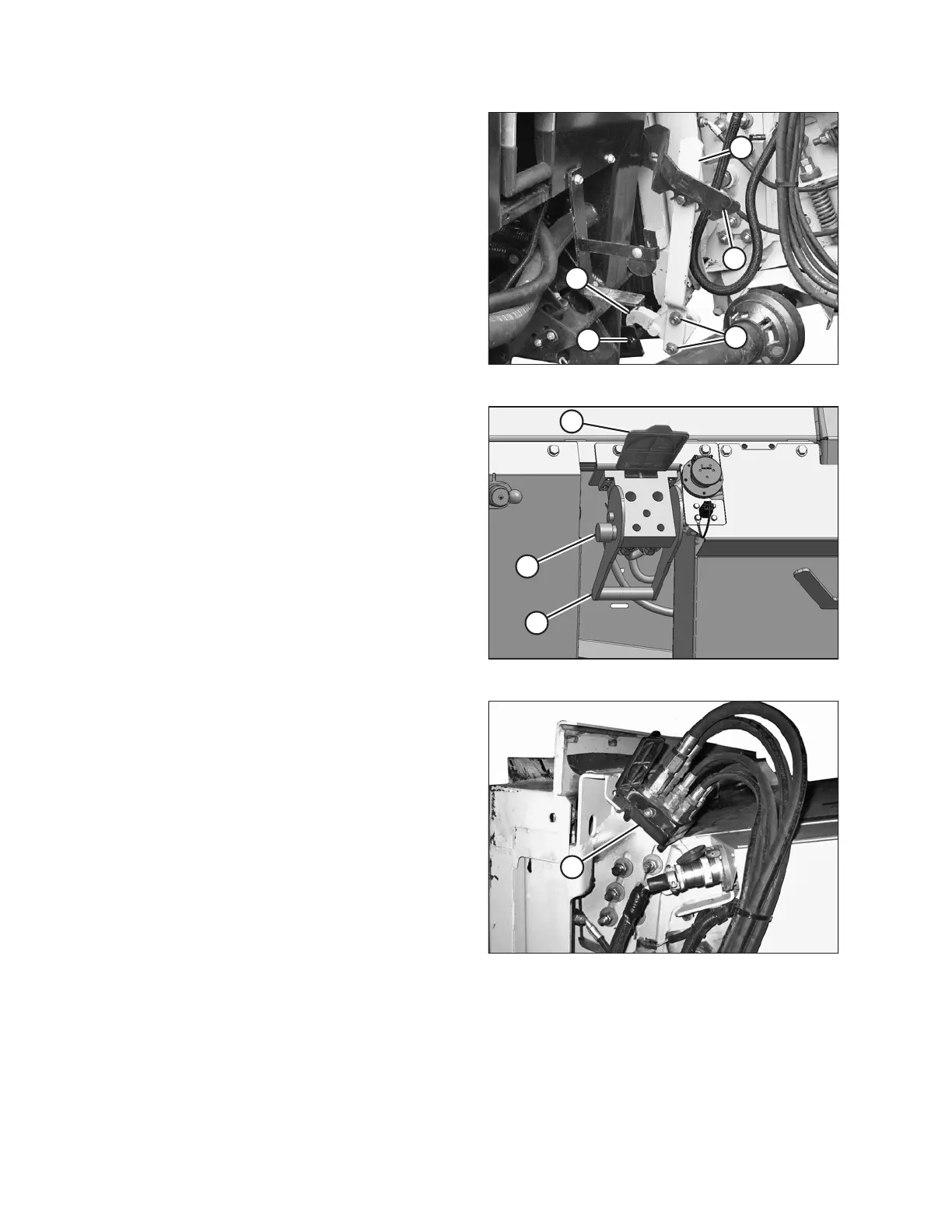

Figure 4.76: Feeder House Locks
5. Lift lever (A) on CA25 on left side of feeder house, and
push handle (B) on combine to engage locks (C) on
both sides of feeder house.
6. Push down on lever (A) so slot in lever engages handle
and locks handle in place.
7. Loosen bolts (E) and adjust lock (C) if lock does not
fully engage pin on CA25 when lever (A) and handle (B)
are engaged. Retighten bolts.
Figure 4.77: Adapter Receptacle
8. Open receptacle cover (A) on CA25.
9. Push in lock button (B) and pull handle (C) to full open
position.
10. Clean receptacle mating surfaces.
Figure 4.78: Combine Coupler
11. Remove hydraulic quick coupler (A) from storage plate
on combine, and clean mating surface of coupler.
