214323 360 Revision A

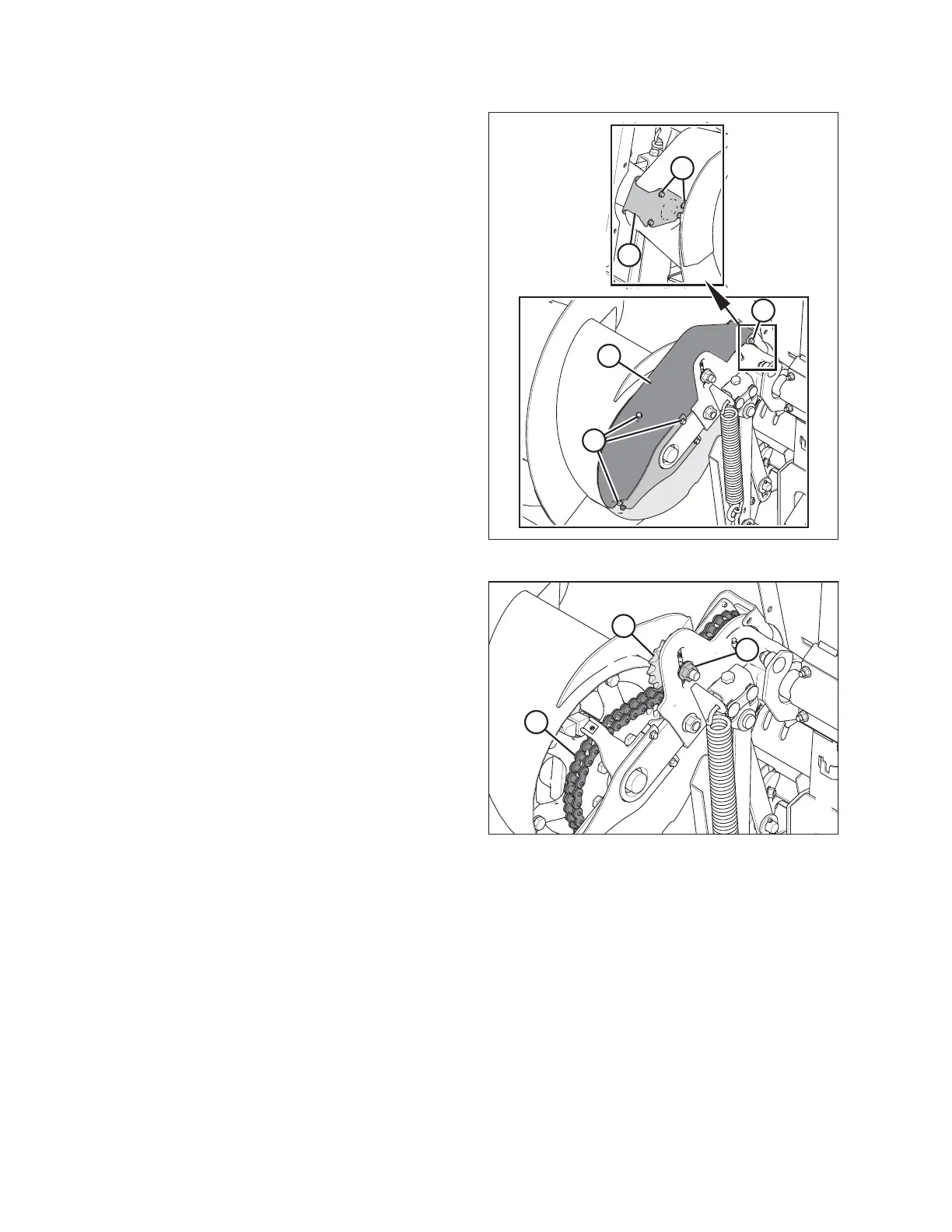

Figure 5.61: Auger Drive
3. Remove the four bolts (A) securing the top cover to the
left side of the auger chain case.
4. Remove bolts (B) on the cover retainer plate (D).
5. Remove top cover (C).
Figure 5.62: Auger Drive
6. Loosen bolt (C) securing idler sprocket (A).
7. Rotate the auger in reverse to take up the slack in the
lower strand of chain (B).
8. Push down idler sprocket (A) to eliminate the remaining
slack in the lower strands (B).
9. Rotate the auger back and forth to check the slack, and
repeat Step 8, page 360 if necessary. A slight amount of
slack is acceptable.
NOTE:
Do NOT use excessive force on idler to tighten chain.
10. Tighten idler bolt (C) and torque to 290 Nm (215 lbf∙ft).
MAINTENANCE AND SERVICING
