214323 365 Revision A

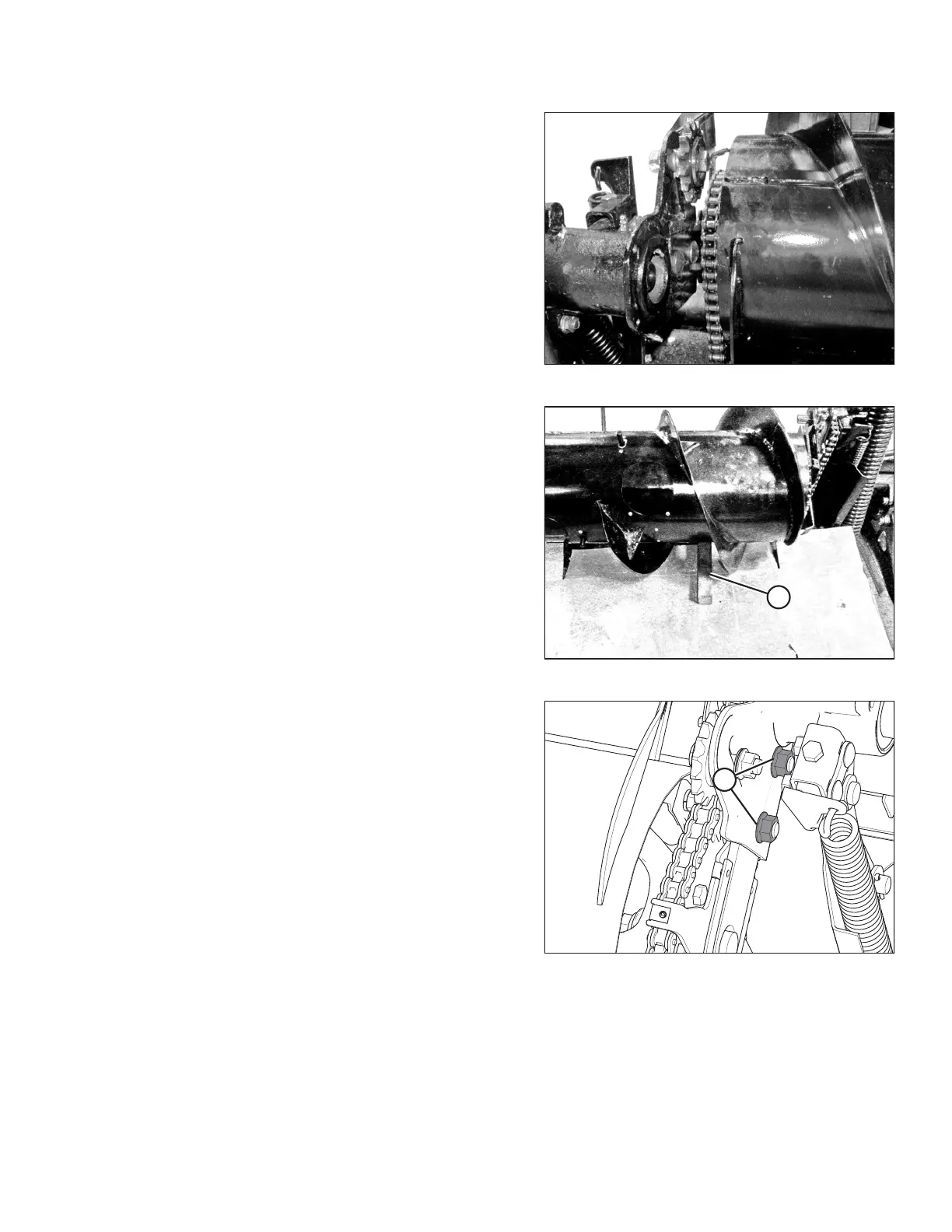

Figure 5.70: Auger Drive
NOTE:
Once the drum starts sliding to the right, the drive
sprocket will fall off.
Figure 5.71: Auger
13. Place a wooden block (A) under the drive end of the
auger to prevent the auger from dropping onto the feed
draper and damaging it.
Figure 5.72: Auger Support
14. Remove the two bolts and nuts (A), and separate the
drive housing from the auger mount bracket.
NOTE:
You may need to lift or support the drum to remove
the bolts.
NOTE:
The bolts on the left side housing are longer than the
bolts on the right side housing.
MAINTENANCE AND SERVICING
