214323 384 Revision A

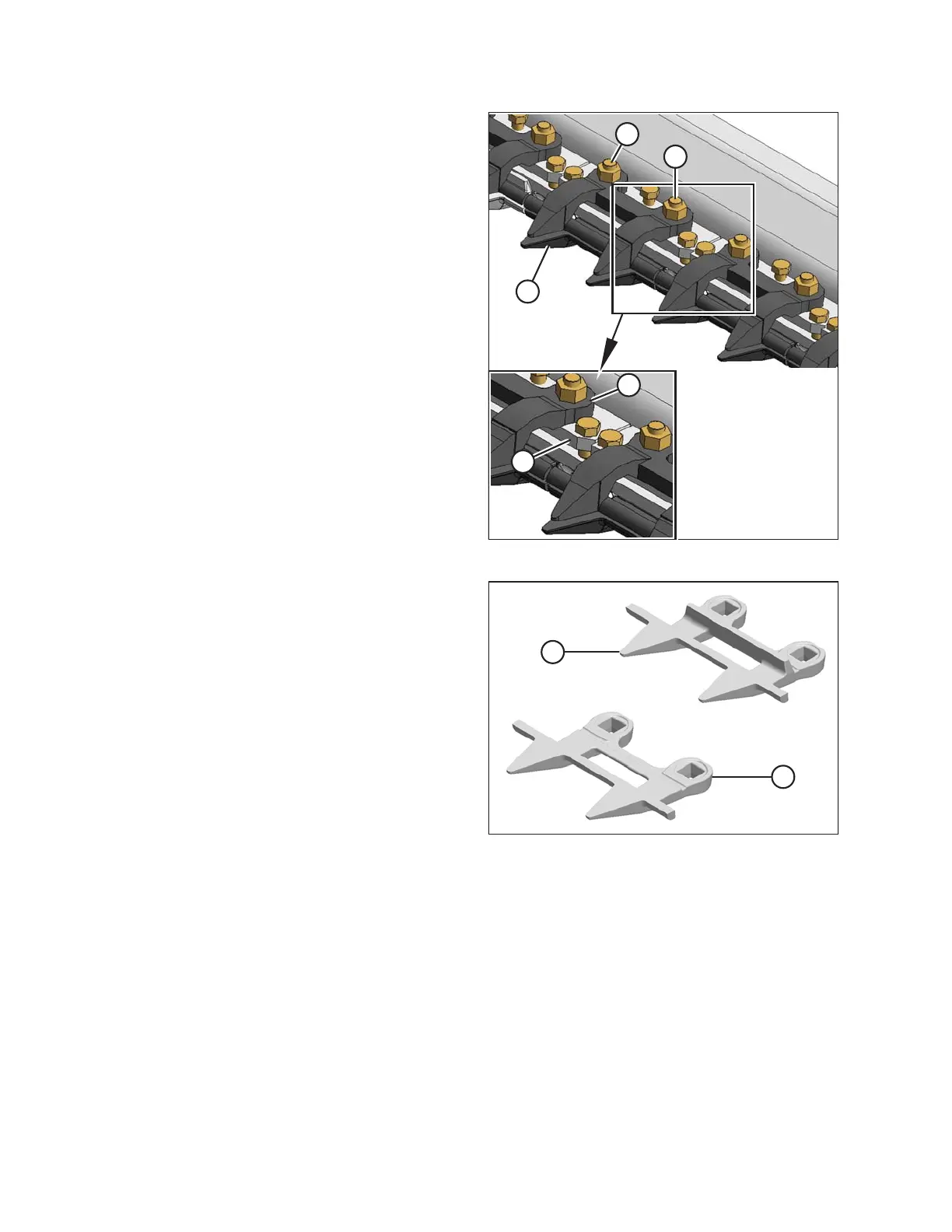

Figure 5.115: Stub Guards
1. Shut down the combine, and remove the key from
the ignition.
2. Stroke the knife manually until the knife sections are
spaced midway between the guards.
3. Remove the two nuts (A) and bolts attaching the
guard (B) and hold-down (C) to the cutterbar.
4. Remove guard (B), plastic wearplate (if installed), hold-
down (C), and adjuster bar (D).
IMPORTANT:
Note the position of the mitre on the adjuster bar (D),
and reinstall the adjuster bar in the same position.
Mitres should not be adjacent to each other.
Figure 5.116: Stub Guards
A - Normal Guard B - Drive Side Guard
IMPORTANT:
The first four outboard guards (B) on the drive sides of
the header do not have ledger plates. Ensure the proper
replacement guards are installed at these locations.
MAINTENANCE AND SERVICING
