WARNING
To avoid bodily injury from fall of raised reel, always engage reel safety props before going under raised
reel for any reason.
IMPORTANT:
Ensure the tine tube is supported at all times to prevent damage to the tube and other components.
1. Lower the header, raise the reel, and engage the reel safety props.
2. Shut down the engine, and remove the key from the ignition.
NOTE:
If replacing only the cam end bushing, refer to Step 8, page 447.

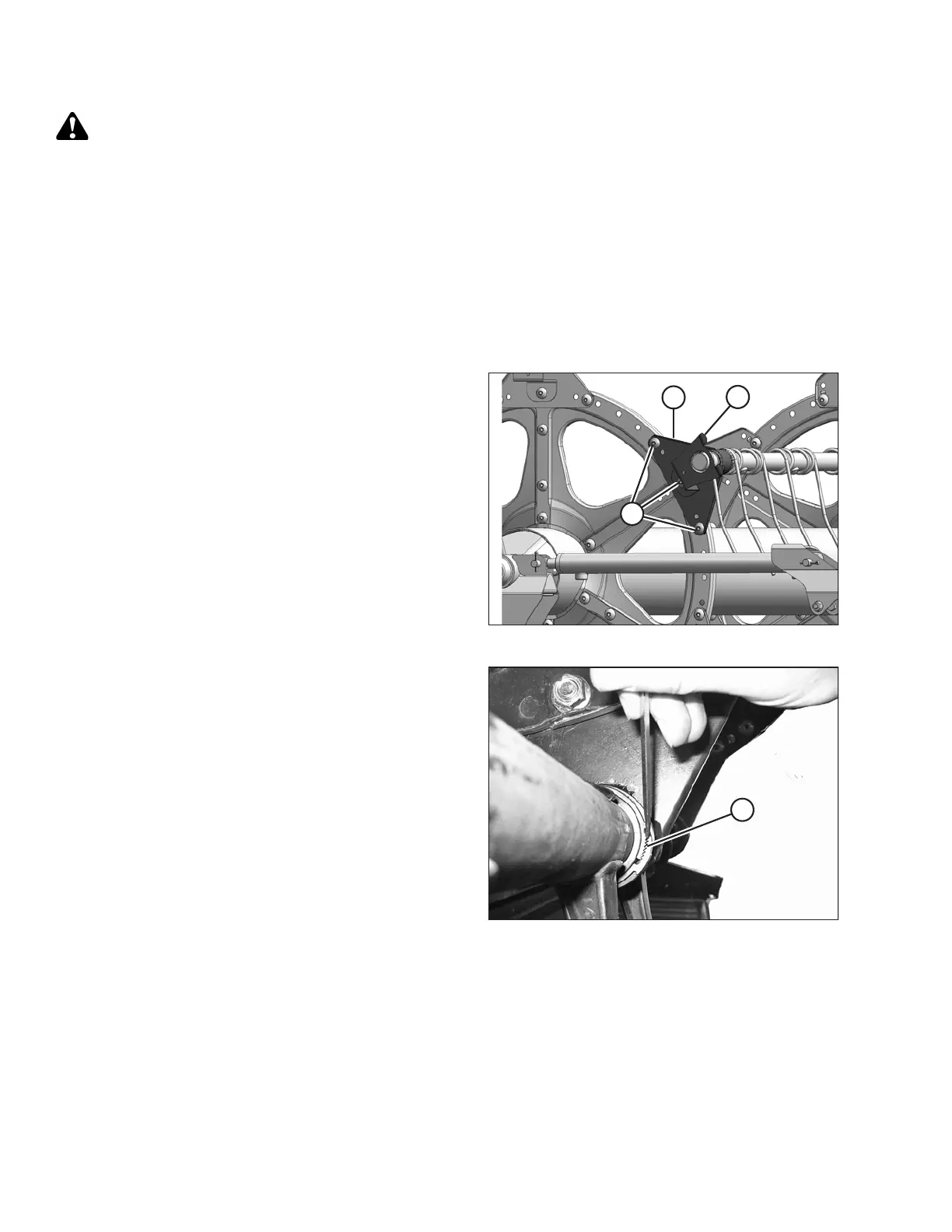

Figure 5.242: Tail End
Removing center disc and tail-end bushings
3. Remove the reel endshields and endshield support (C)
from the tail end of the reel at the applicable tine
tube location.
NOTE:
There are no endshields on the center disc.
4. Remove bolts (A) securing arm (B) to the disc.
IMPORTANT:
Note the hole locations in the arm and disc and ensure
the bolts (A) are reinstalled at the original locations.
Figure 5.243: Bushing Clamp
5. Release bushing clamps (A) using a small screwdriver
to separate the serrations. Pull the clamp off the
tine tube.
