214323 447 Revision A

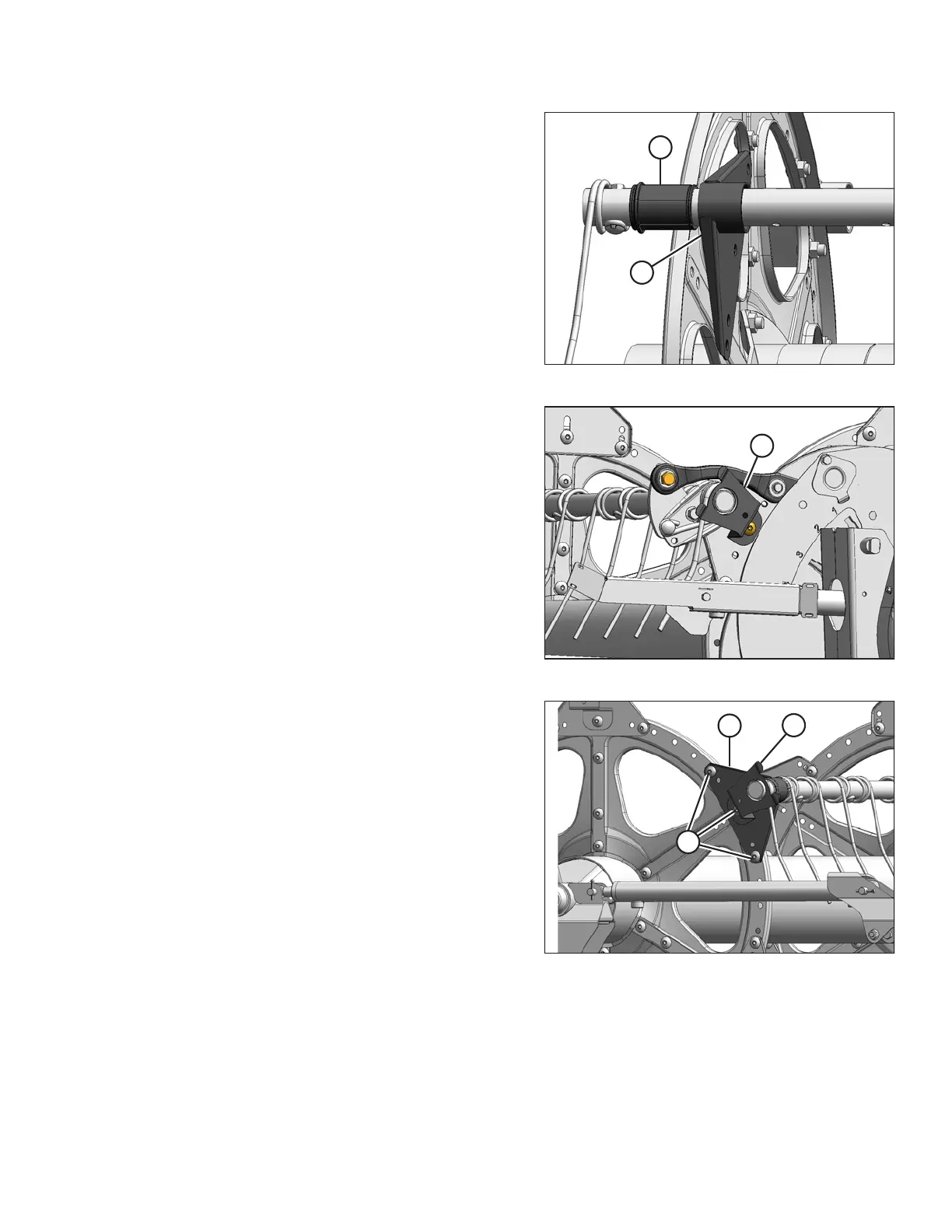

Figure 5.244: Bushing
6. Rotate arm (A) until clear of the disc and slide the arm
inboard off of bushing (B).
7. Remove bushing halves (B). If required, remove the
next tine or plastic finger so the arm can slide off the
bushing. Refer to the following procedures as
necessary:
• Removing Plastic Fingers, page 443
• Removing Steel Tines, page 441
Figure 5.245: Cam End
Removing cam end bushings
8. Remove the endshields and endshield support (A) at
the applicable tine tube location on the cam end.
NOTE:
Removing cam end bushings requires the tine tube be
moved through the disc arms to expose the bushing.
Figure 5.246: Tail End
9. Remove the reel endshields and endshield support (C)
from the tail end of the reel at the applicable tine
tube location.
10. Remove bolts (A) securing arms (B) to the tail and
center discs.
MAINTENANCE AND SERVICING
