214323 448 Revision A

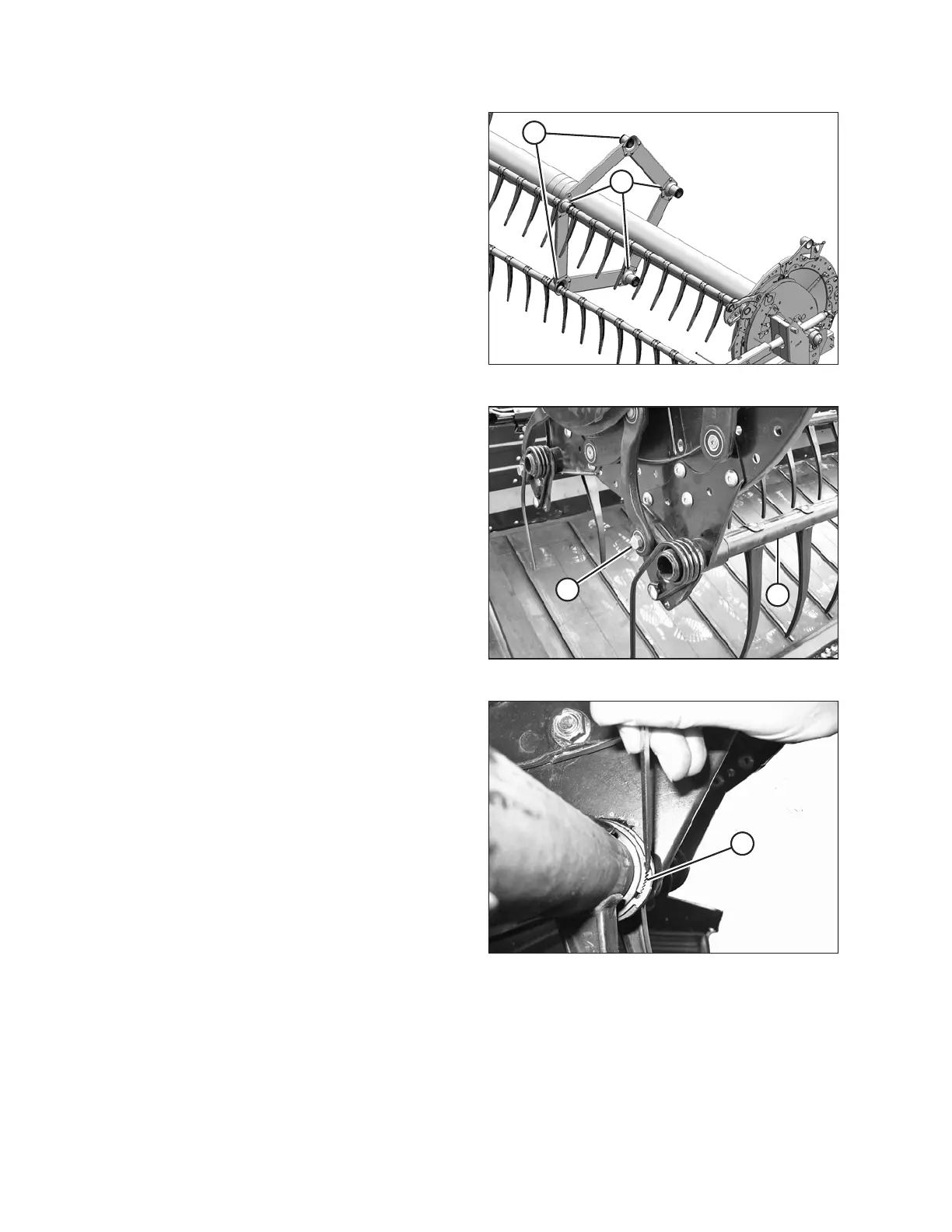

Figure 5.247: Tine Tube Supports
11. Release the bushing clamps or disconnect the support
channels from the tine tube support (if installed)
depending on which tine tube is being moved. Three
tine tubes (B) require channel disconnection and two
tine tubes (C) require only bushing clamp removal.
Figure 5.248: Cam End
12. Remove bolt (A) from the cam linkage so the tine
tube (B) is free to rotate.
NOTE:
Be sure to not lose shim, and mark shim location for
reassembly.
Figure 5.249: Bushing Clamp
13. Release bushing clamps (A) at the cam disc using a
small screwdriver to separate the serrations. Move the
clamps off the bushings.
MAINTENANCE AND SERVICING
