Figure 5.250: Cam End
14. Slide tine tube (A) outboard to expose the bushing (B).
15. Remove bushing halves (B). If required, remove the
next tine or plastic finger so the arm can slide off the
bushing. Refer to the following procedures if necessary:
• Removing Plastic Fingers, page 443
• Removing Steel Tines, page 441

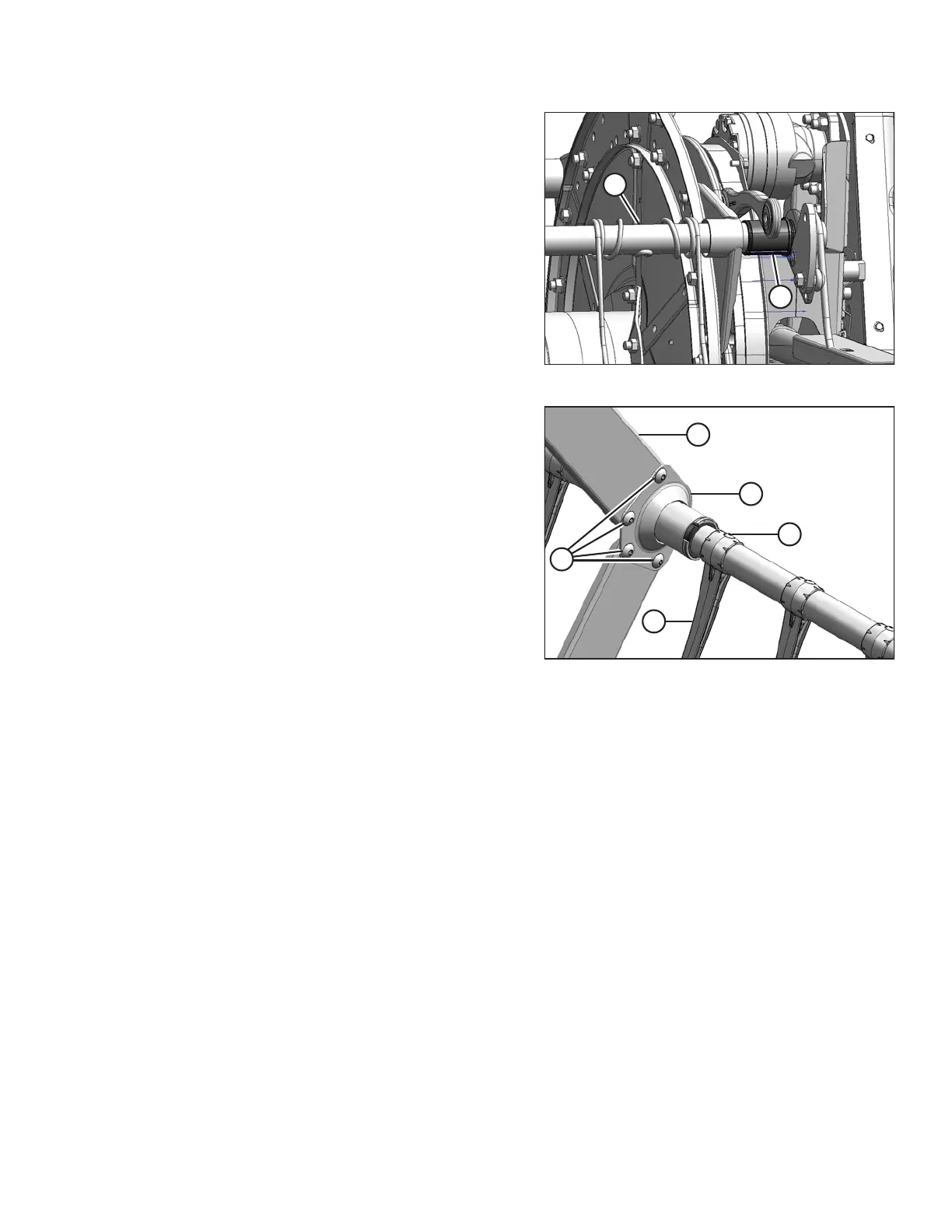

Figure 5.251: Tine Tube Support
Removing tine tube support bushings (if installed)
16. Locate support (A) that requires a new bushing.
17. Remove the four bolts (B) securing channels (C) to
support (A).
18. If finger (D) is too close to the support to allow access to
the bushing, remove screw (E) and remove finger (D).
Refer to Removing Plastic Fingers, page 443.
