214323 50 Revision A
1. Raise header to full height.
2. Shut down the combine, and remove the key from the ignition.
3. Engage header lift cylinder safety props.

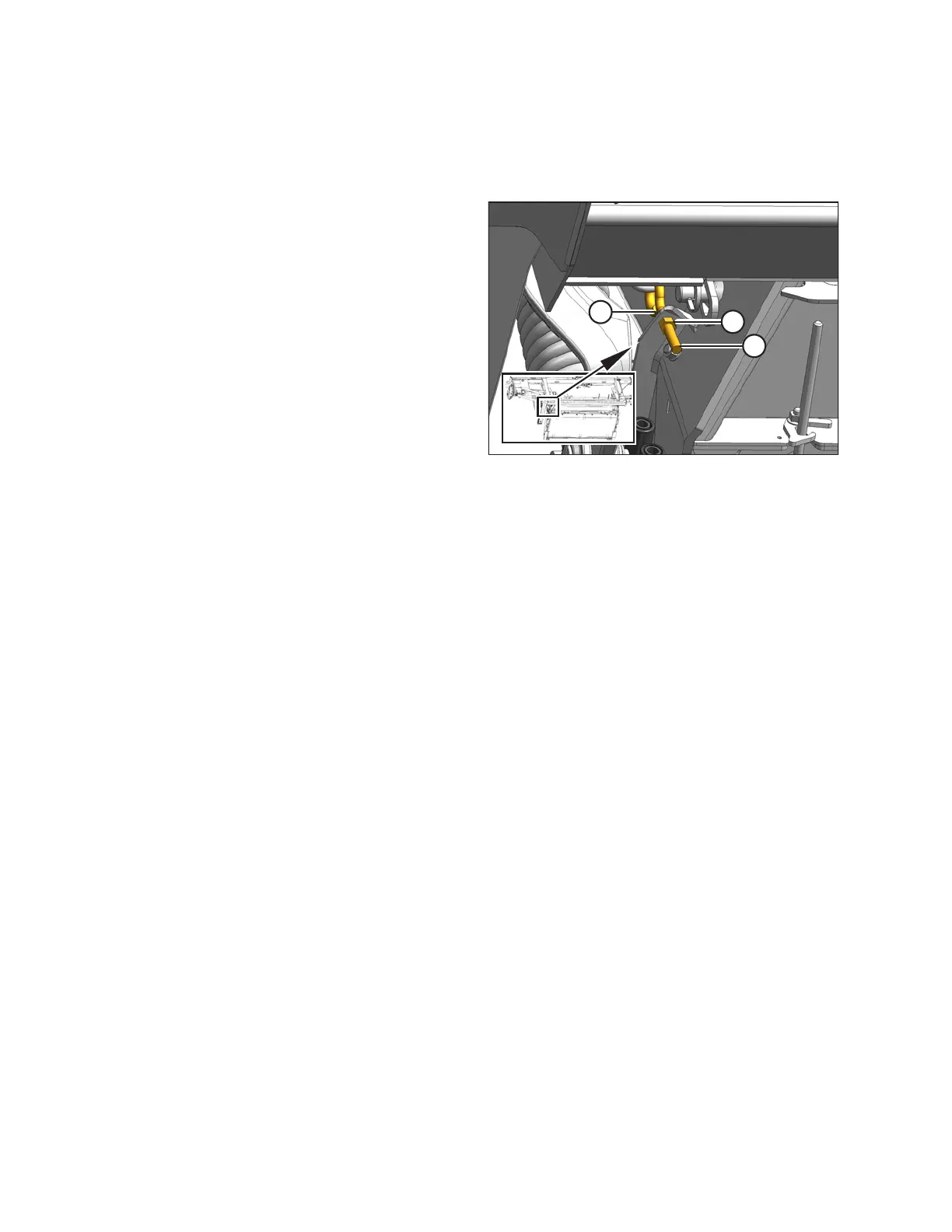

Figure 3.23: Spring Tensioner
4. Check the thread length protruding past the nut (B).
Length should be 15 mm (0.60 in.).
If adjustment is required, follow these steps:
5. Loosen upper jam nut (A) on spring tensioner.
6. Turn lower nut (B) until the thread (C) protrudes
15 mm (0.60 in.).
7. Tighten jam nut (A).
8. Repeat Steps 5, page 50 to 7, page 50 on
opposite side.
OPERATION
