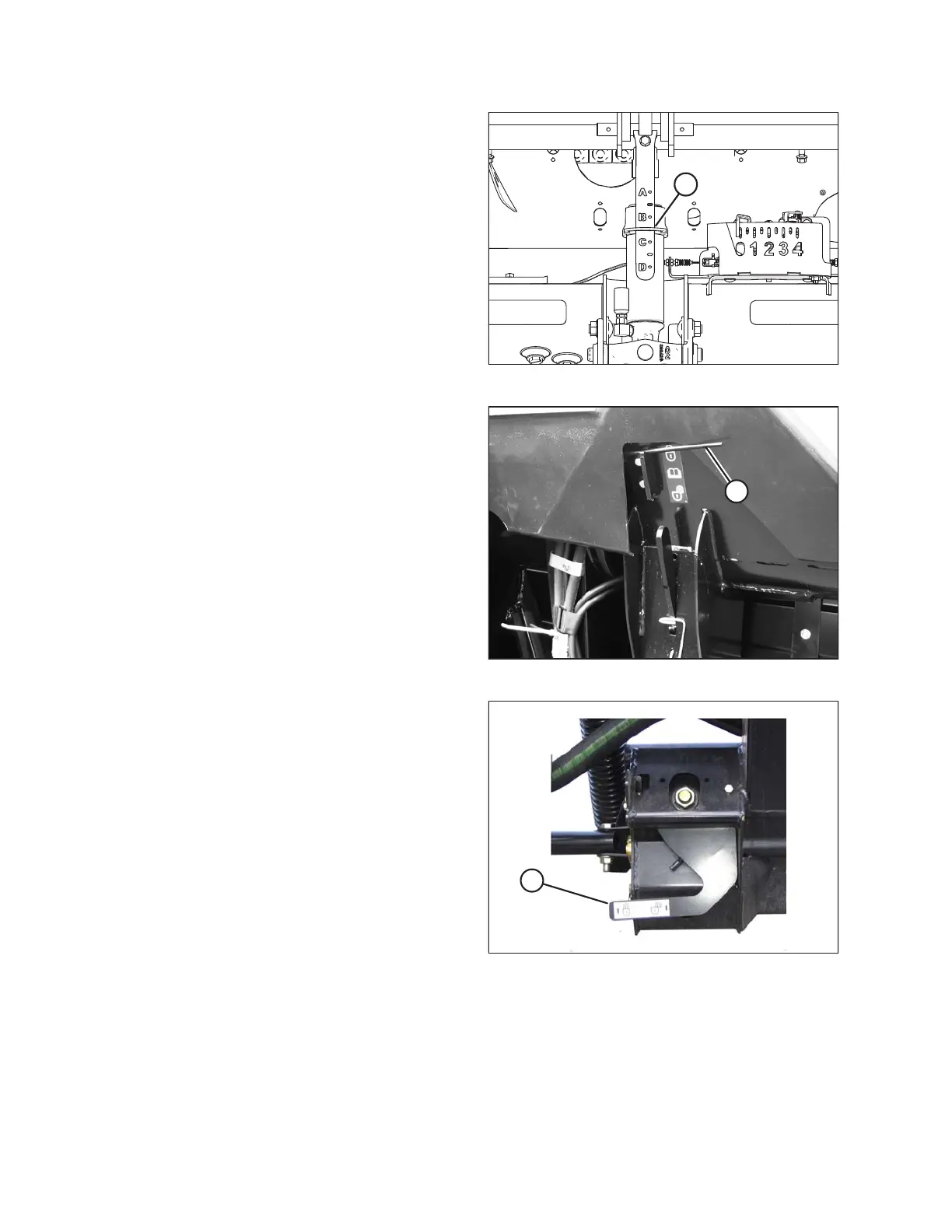

Figure 3.36: Center-Link
3. Adjust center-link to between B and C on indicator (A).
4. Position cutterbar 200–300 mm (8–12 in.) off
the ground.
5. Stop engine and remove key from ignition.
Figure 3.37: Wing Lock in Lock Position
6. Place wing lock spring handles (A) in lock
(upper) position.
Figure 3.38: Header Float Lock in
Unlock Position
7. Check that both header float lock levers (A) are in
down (UNLOCK) position.
