214323 61 Revision A

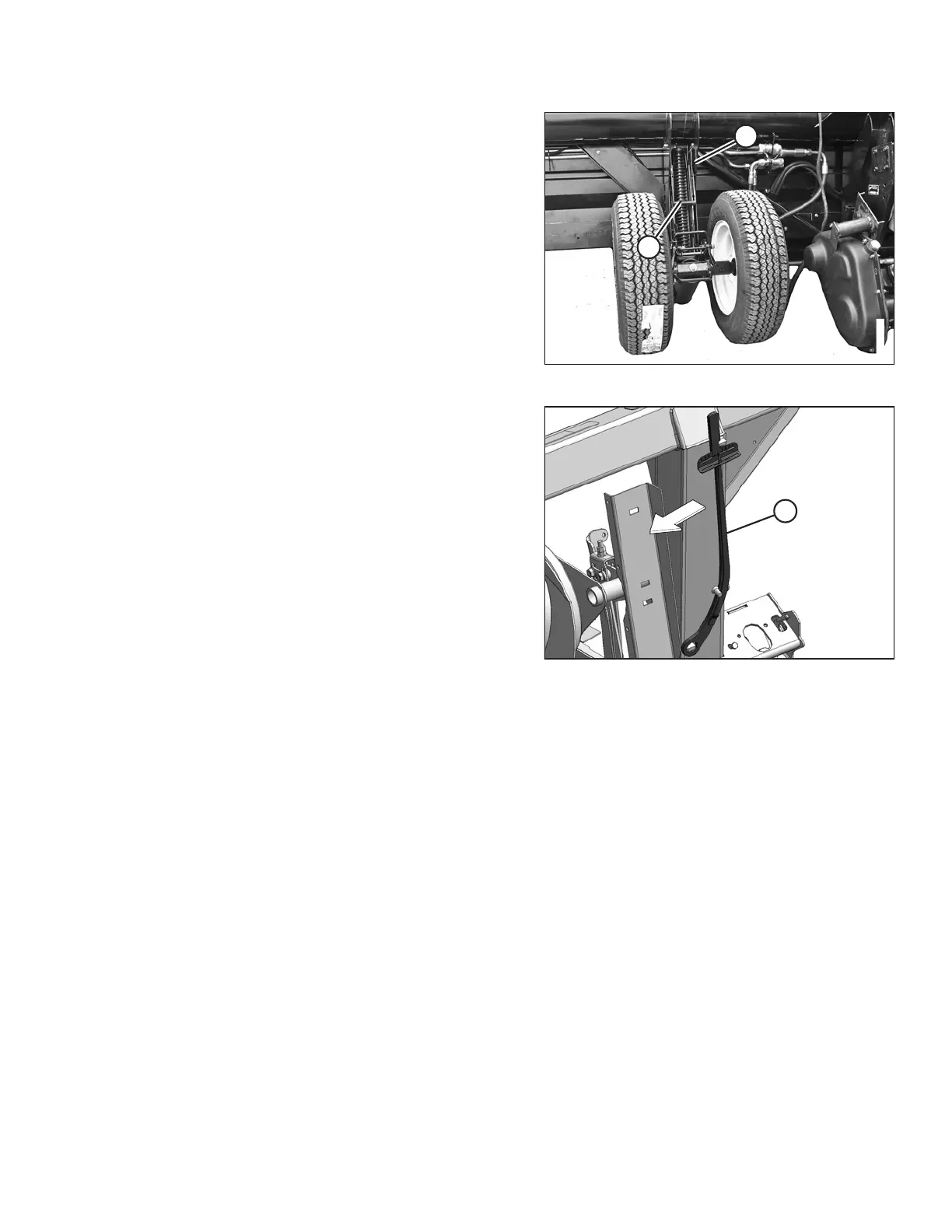

Figure 3.39: Left Wheel
8. Place stabilizer wheels and slow speed transport
wheels (if equipped) in storage position as follows:
a. Support wheel weight by lifting slightly with one
hand, and pull up on handle (A) to release the lock.
b. Lift wheels to desired height, and engage support
channel into slot (B) in upper support.
c. Push down on handle (A) to lock.
Figure 3.40: Torque Wrench
9. Remove supplied torque wrench (A) from its storage
position at right of adapter frame. Pull slightly in
direction shown to disengage wrench from the hook.
OPERATION
