214323 62 Revision A

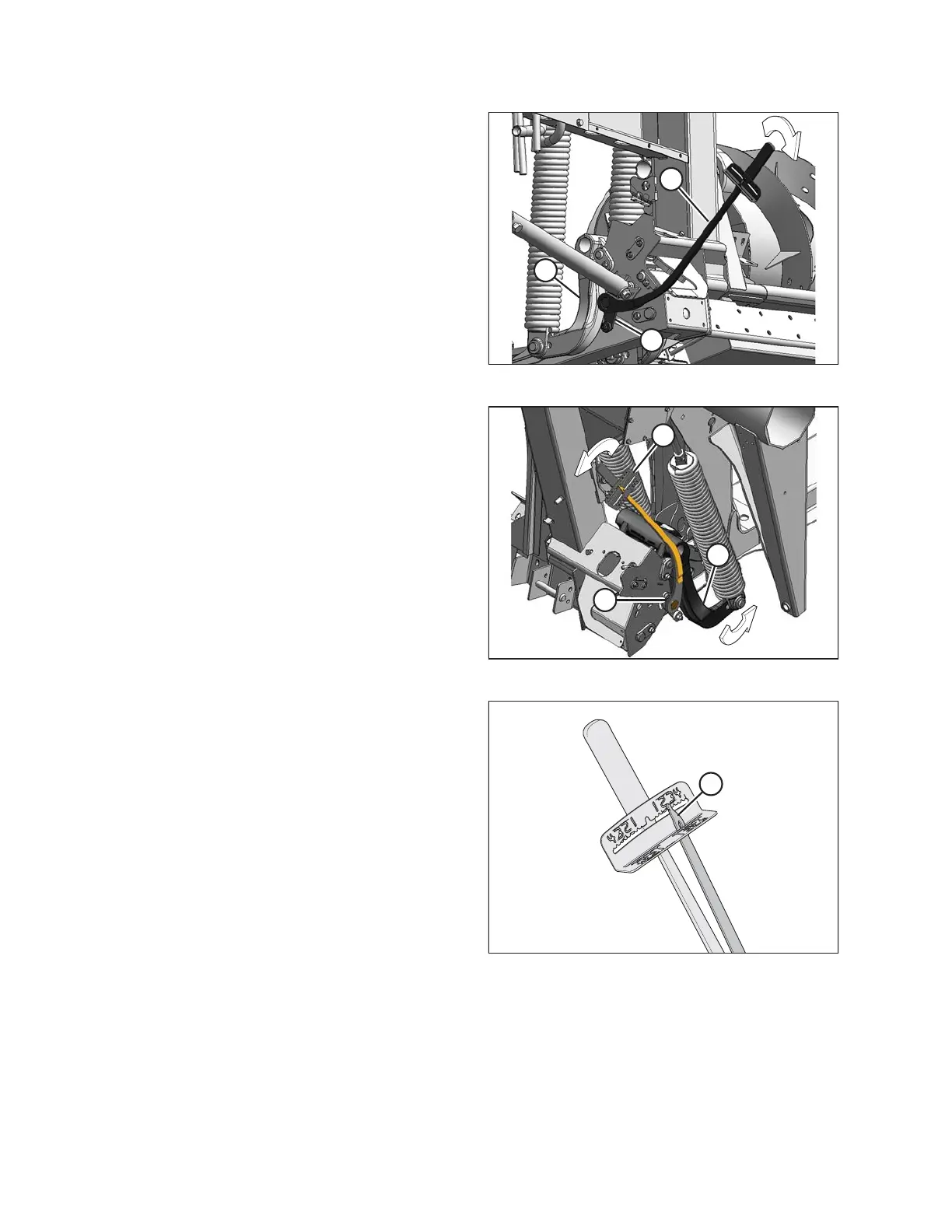

Figure 3.41: Left Side of Adapter
Figure 3.42: Right Side of Adapter
10. Place supplied torque wrench (A) onto float lock (B).
Note position of wrench for checking left or right side.
11. Push down on wrench to rotate bell crank (C) forward.
Figure 3.43: Indicator
12. Push down on wrench until indicator (A) reaches a
maximum reading and then begins to decrease. Note
maximum reading and repeat at opposite side.
13. Use following table as a guide for float settings:
• If reading on wrench is high, header is heavy
• If reading on wrench is low, header is light
OPERATION
