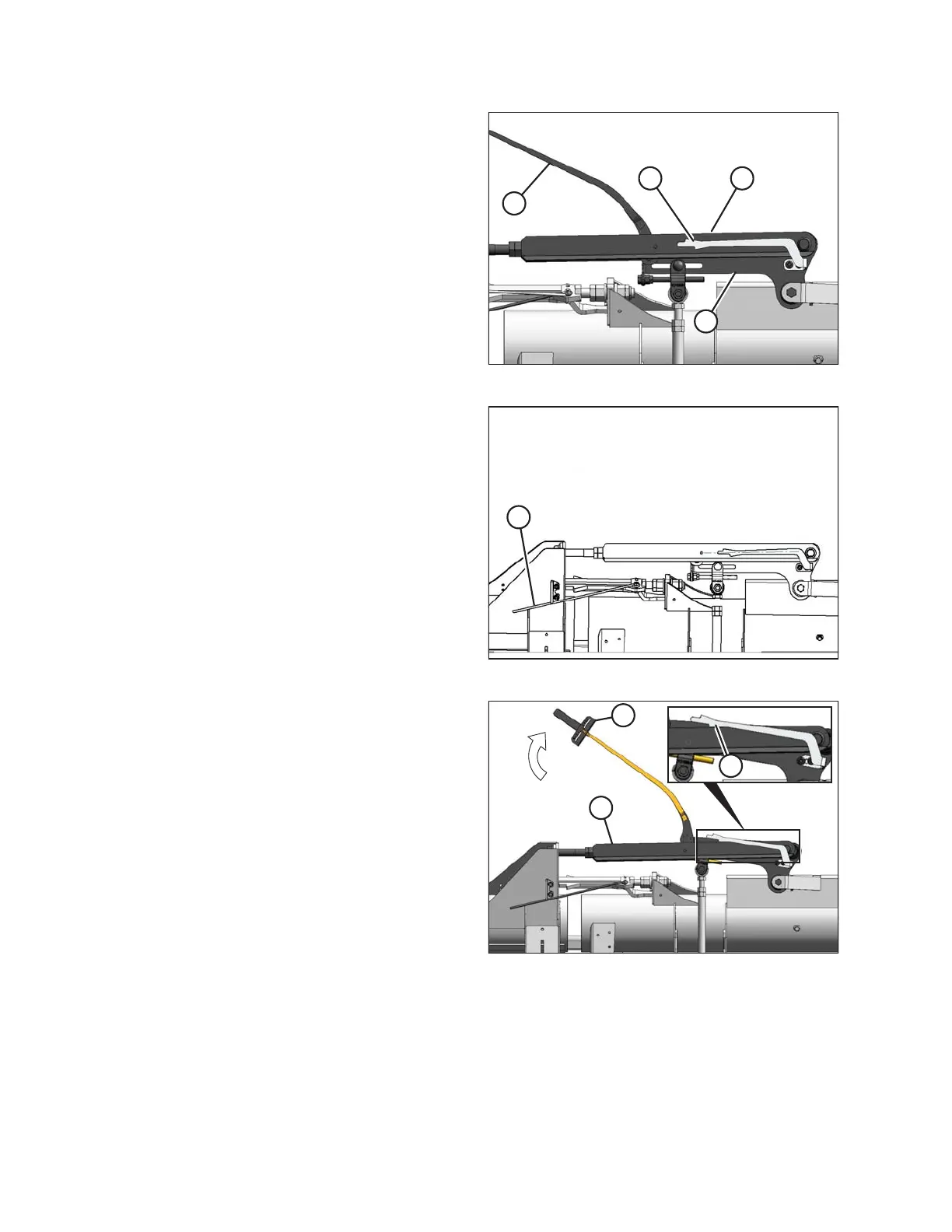

Figure 3.59: Balance Linkage
8. Check that pointer (D) is properly positioned as follows:
a. Use wrench (A) to move bell crank (B) so that lower
edge of bell crank is parallel to top-link (C).
b. Check that pointer (D) is lined up with the top-
link (C). Bend pointer if necessary.
1009645
A
Figure 3.60: Wing Lock in UNLOCK Position
9. Unlock the wings by moving spring handles (A) to lower
(UNLOCK) position.
1003621
A
B
C
Figure 3.61: Balance Linkage
10. Move wing upward with torque wrench (A) until pointer
lower alignment tab (C) lines up with upper edge of top-
link (B). Observe indicator reading (A) on wrench and
record it.
