214323 71 Revision A

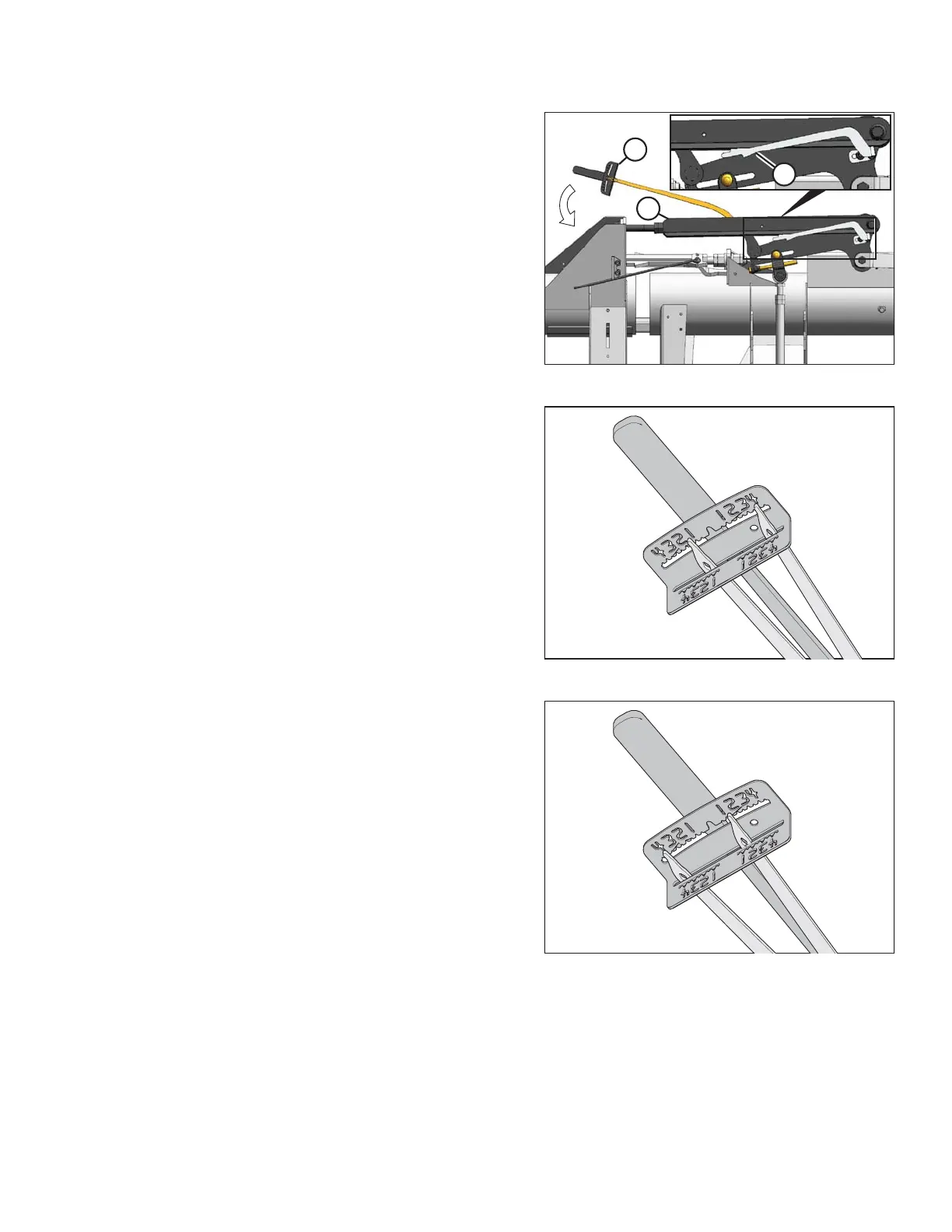

Figure 3.62: Balance Linkage
11. Move wing downward with torque wrench (A) until
pointer upper alignment tab (C) lines up with the lower
edge of top-link (B). Observe indicator reading (A) on
the wrench and record it.
• If the difference between the readings is 0.5 or less,
the wing is balanced and no further adjustment is
required. Follow the steps below to reinstall the
linkage cover.
• If the difference between the readings is more than
0.5, the wing is not balanced. Refer to Adjusting
Wing Balance, page 73.
Figure 3.63: Wrench Indicator
• If the indicator range is as shown at right, the wing is
too light.
Figure 3.64: Wrench Indicator
• If the indicator range is as shown at right, the wing is
too heavy.
OPERATION
