215916 120 Revision A

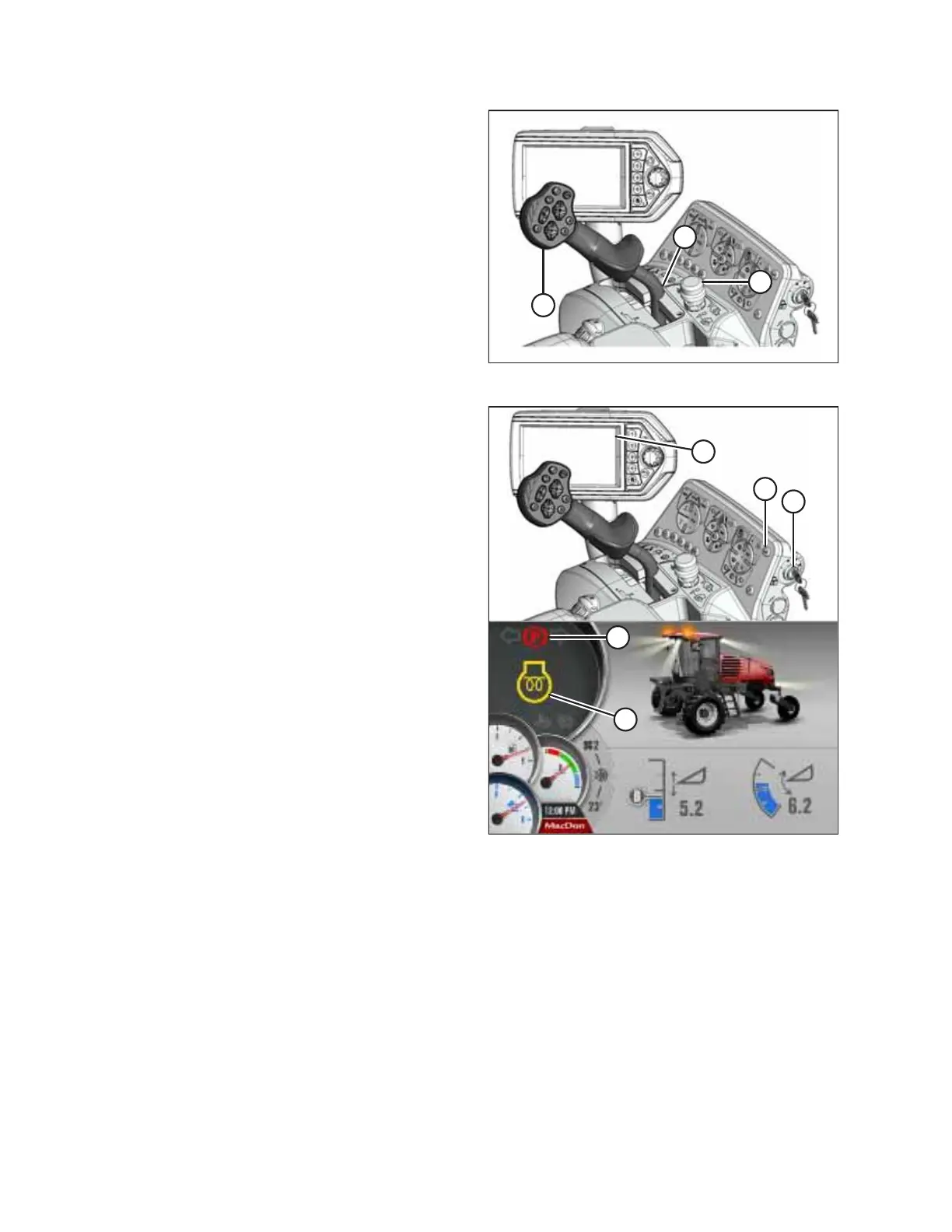

Figure 4.15: Operator Controls
3. Move GSL (A) into PARK (C).
4. Turn the steering wheel until it locks. It may be possible to
move the steering wheel slightly in the locked position.
IMPORTANT:
Do NOT attempt to force the wheel out of the locked
position or damage to the steering system may occur.
5. Fasten the seat belt.
6. Push HEADER ENGAGE switch (B) to ensure it is in the OFF
position.
Figure 4.16: Console and HPT Run Screen
7. Press HORN button (E) three times prior to starting the
engine.
8. Turn IGNITION switch (A) to the ON position; HPT
display (B) will light up. If the HPT is still booting up, wait
for WAIT TO START (WTS) symbol (C) to disappear before
trying to start the engine.
9. Ensure that red PARK symbol light (D) is ON and that there
are no error messages on the screen.
OPERATION
