215916 152 Revision A

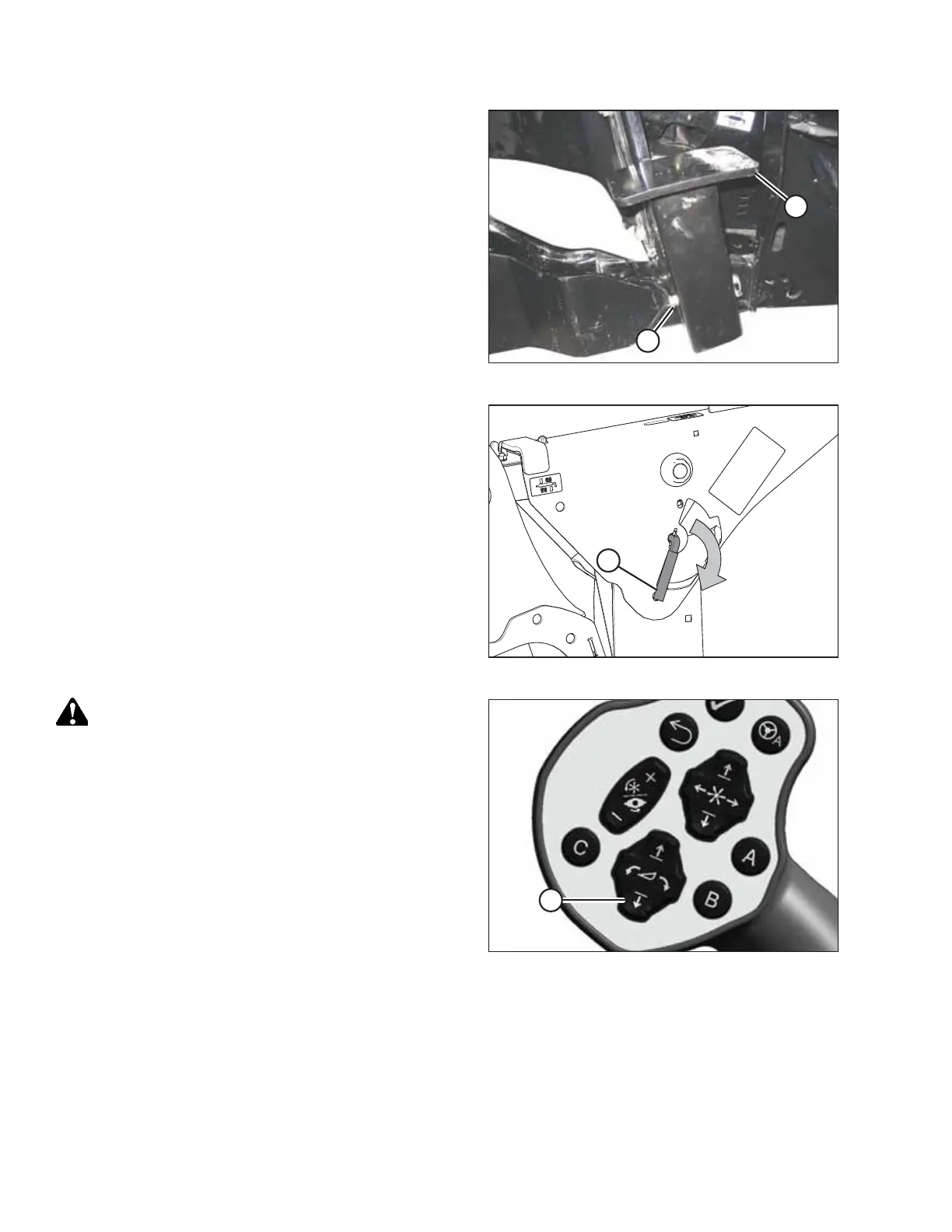

Figure 4.75: Header Stand
20. Remove the lynch pin from clevis pin (A) in stand (B).
21. Hold stand (B) and remove pin (A).
22. Move the stand to its storage position by inverting it and
positioning it onto the bracket as shown. Reinsert clevis
pin (A) and secure it with the lynch pin.
Figure 4.76: Safety Prop Lever
23. Disengage the safety props on both lift cylinders as follows:
a. Turn lever (A) away from the header to raise the safety
prop until the lever locks into the vertical position.
b. Repeat the previous step for the opposite cylinder.
NOTE:
If the safety prop will NOT disengage, raise the header to
release the prop.
Figure 4.77: GSL
WARNING
Check to be sure all bystanders have cleared the area.
24. Start the engine and press HEADER DOWN switch (A) on
the GSL to fully lower the header.
OPERATION
