215916 169 Revision A

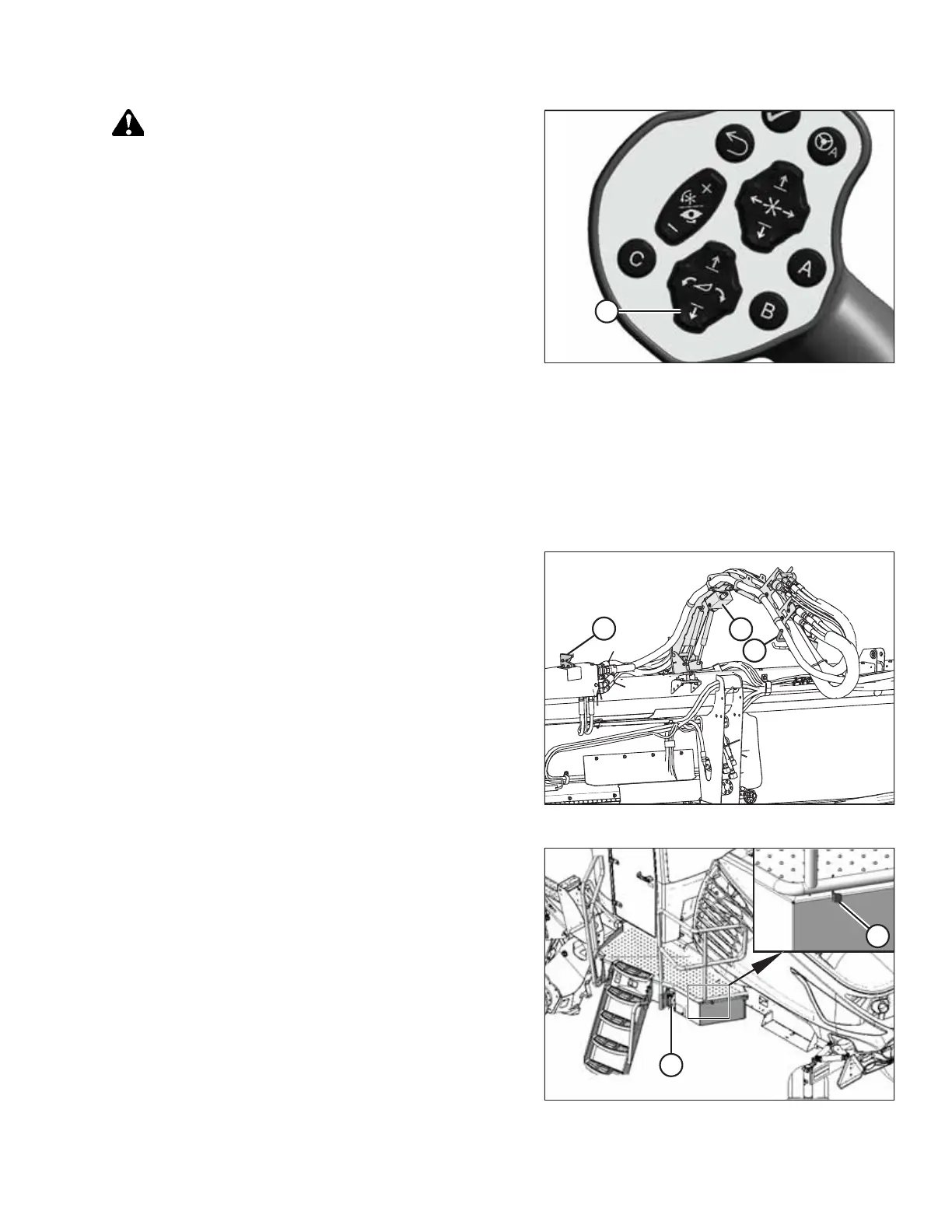

Figure 4.118: GSL
DANGER
Ensure that all bystanders have cleared the area.
21. Start the engine and press HEADER DOWN switch (A) on
the GSL to fully lower the header.
Connecting D1X or D1XL Series Draper Header Hydraulics
Connecting the header’s hydraulics to the windrower is a simple procedure, thanks to the hydraulic hose management
system. There is an additional step to perform if you are switching from using a rotary header to using a draper header.
IMPORTANT:
To prevent contamination of the hydraulic system, use a clean rag to remove dirt and moisture from all hydraulic couplers.
Figure 4.119: Hydraulic Hose Management System
1. Push the link on latch (C) and pull handle (A) on hydraulic
hose management system (B) rearward to disengage the
arm from the latch.
2. Move hydraulic hose management system (B) toward the
left cab-forward side of the windrower.
Figure 4.120: Left Cab-Forward Platform
3. Approach platform (A) on the left cab-forward side of the
windrower and ensure the cab door is closed.
4. Push latch (B), and pull platform (A) toward the walking
beam until it stops and the latch engages.
OPERATION
