215916 202 Revision A

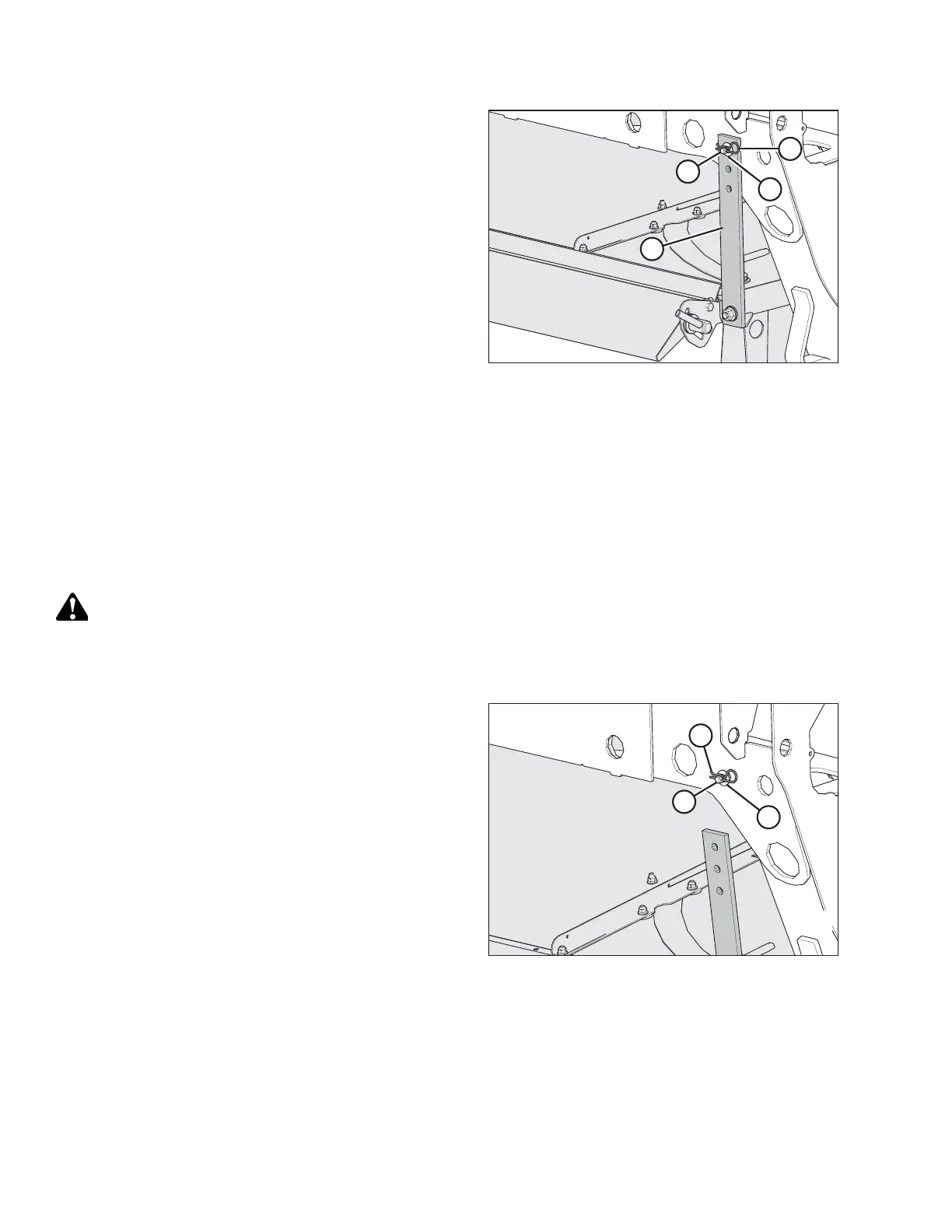

Figure 4.201: Rubber Strap Securing Forming Shield
onto Windrower Leg
2. Mark the strap location, then remove and retain hairpin (A)
and washer (B) from straight pin (C).
3. Pull rubber strap (D) away from straight pin (C).
4. Lower the rear end of the forming shield.
5. Reinstall washer (B) and hairpin (A) on straight pin (C) for
storage.
6. Repeat Step 2, page 202 to Step 5, page 202 at the
opposite side.
7. Reattach the clevis pin and lynch pin to the forming shield
for storage.
8. Remove the forming shield.
4.4.4 R2 Series Rotary Disc Header
The rotary disc header, when attached to a windrower, is designed to cut, condition, and lay a wide variety of grasses and
hay crops in windrows.
Attaching Forming Shield
The forming shield controls the width and placement of the windrow.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
Figure 4.202: Lynch Pin and Washer at Rear of
Windrower Leg
2. Remove lynch pin (A) and washer (B) from straight pin (C).
OPERATION
