215916 435 Revision A
Auxiliary Power Posts
The auxiliary power posts are a convenient way to connect remote auxiliary fuel pumps for in-field filling of the windrower
fuel tank, trickle charging, or maintaining a battery charge.
IMPORTANT:
The auxiliary power posts are NOT meant for continuous duty. Remote fill pump motors have a high gallons per
minute (GPM) rate, and most models can fill the windrower fuel tank within 10 –15 minutes.
IMPORTANT:
The auxiliary power posts are NOT to be used as battery boost posts. Boosting a battery from these posts can result in
blowing the auxiliary power posts’ positive terminal fuse.

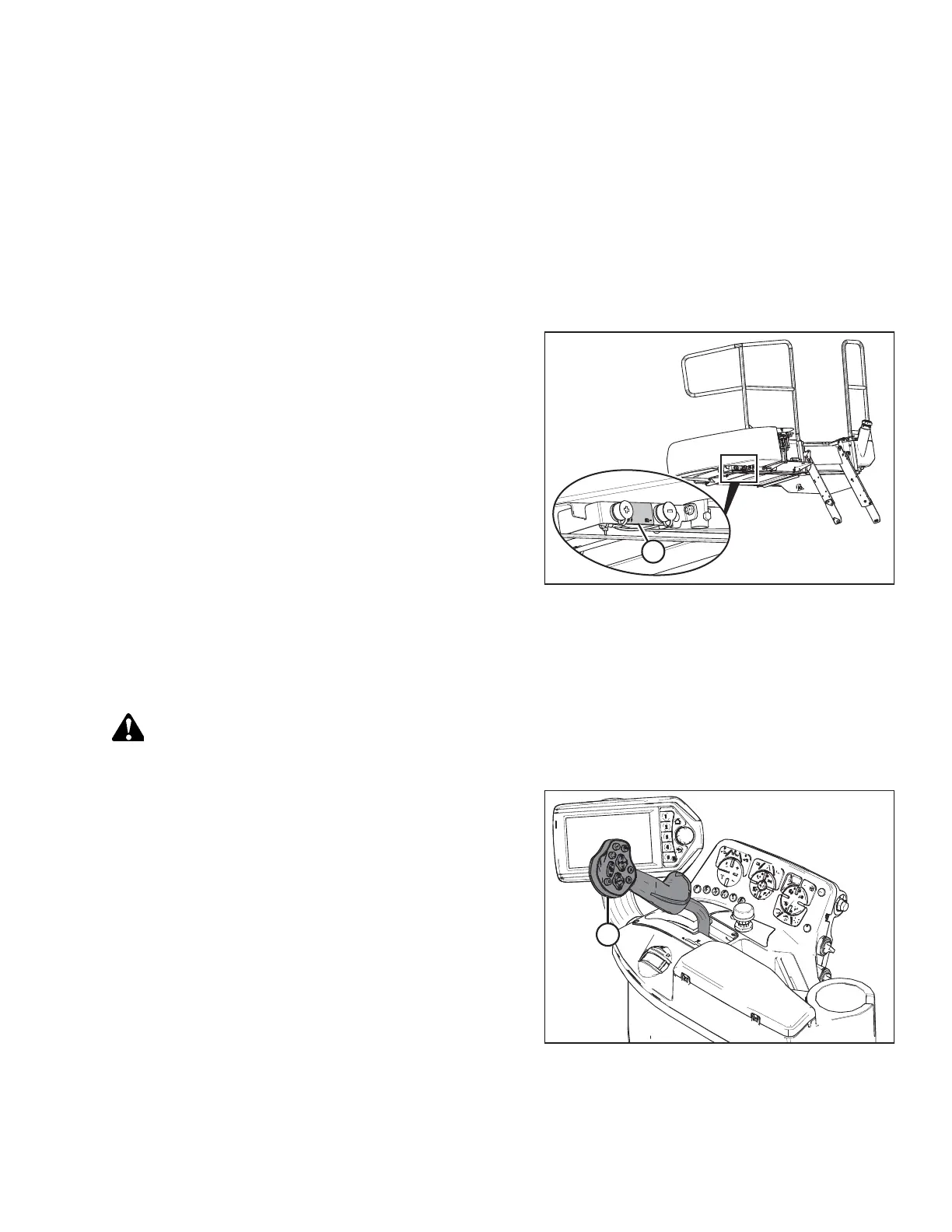

Figure 5.164: Auxiliary Power Posts Decal
IMPORTANT:
Ensure the device being connected to the power posts has an
amperage rating less than that of the maximum fuse rating listed
on the auxiliary power posts’ decal (A). 30 Amp loads and smaller
are recommended as anything larger may blow the fuse if the
device has a high in-rush current characteristic.
5.14.2 Checking Steering Link Pivots
The following checks should be performed every year:
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
Figure 5.165: Console
1. Place ground speed lever (GSL) (A) in PARK, shut down the
engine, and remove the key.
MAINTENANCE AND SERVICING
