Replacing Bulbs in Standard Work Lights or Cab-Forward Headlights
Lights are an important safety feature of the windrower. Replace damaged or malfunctioning bulbs or lamps immediately.
The following procedure applies to all halogen bulbs shown in Figure 5.195, page 451. If replacing engine-forward headlight
bulbs, refer to Replacing Headlight Bulb – Engine-Forward, page 452.

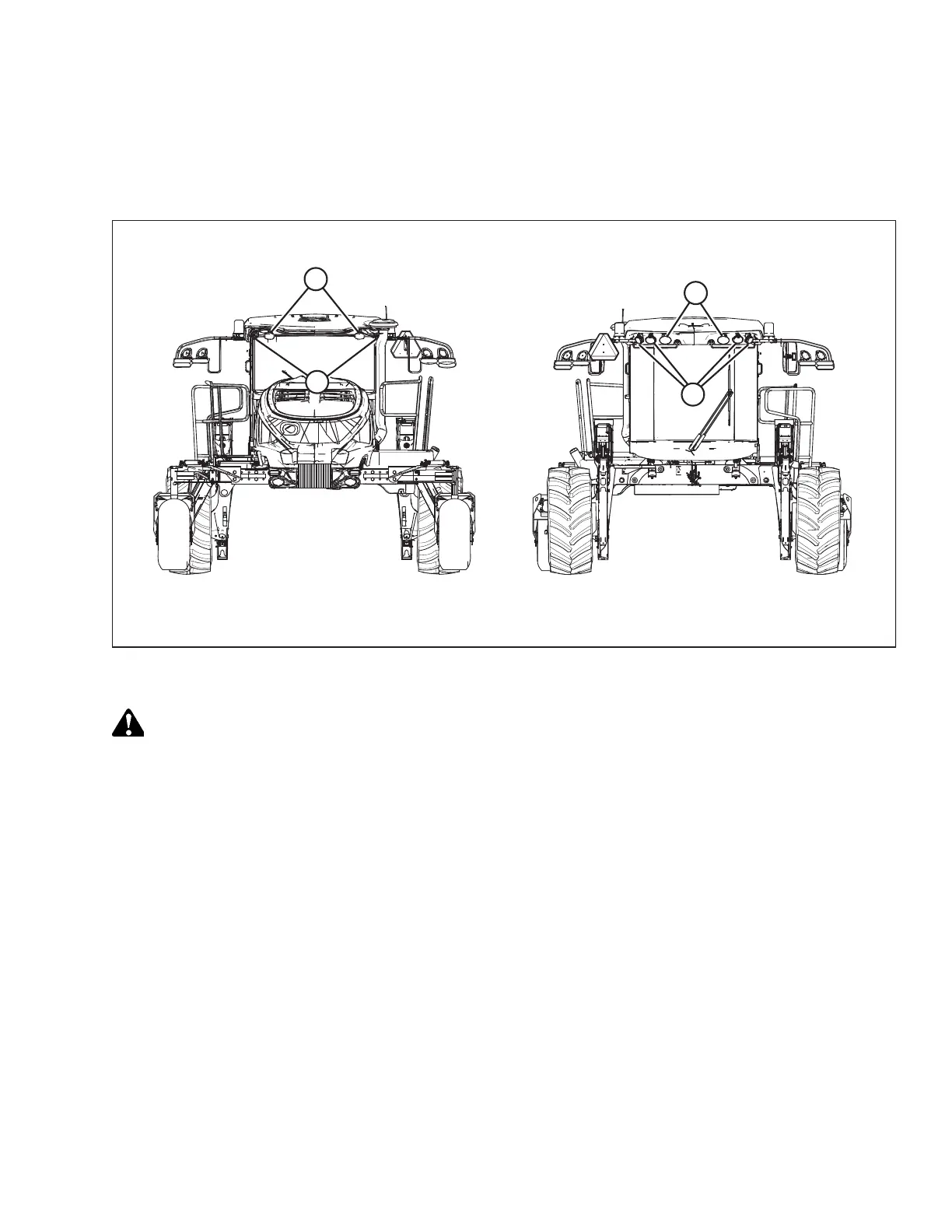

Figure 5.195: Halogen Bulb Locations
A - Front Work Lights (Field) B - Stubble Lights (Rear) C - Rear Work Lights D - Headlights (Cab-Forward)
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
NOTE:
Front work light shown.
1. Shut down the engine, and remove the key from the ignition.
