215916 454 Revision A
1015802
AA
AA
B
C
C
A
A

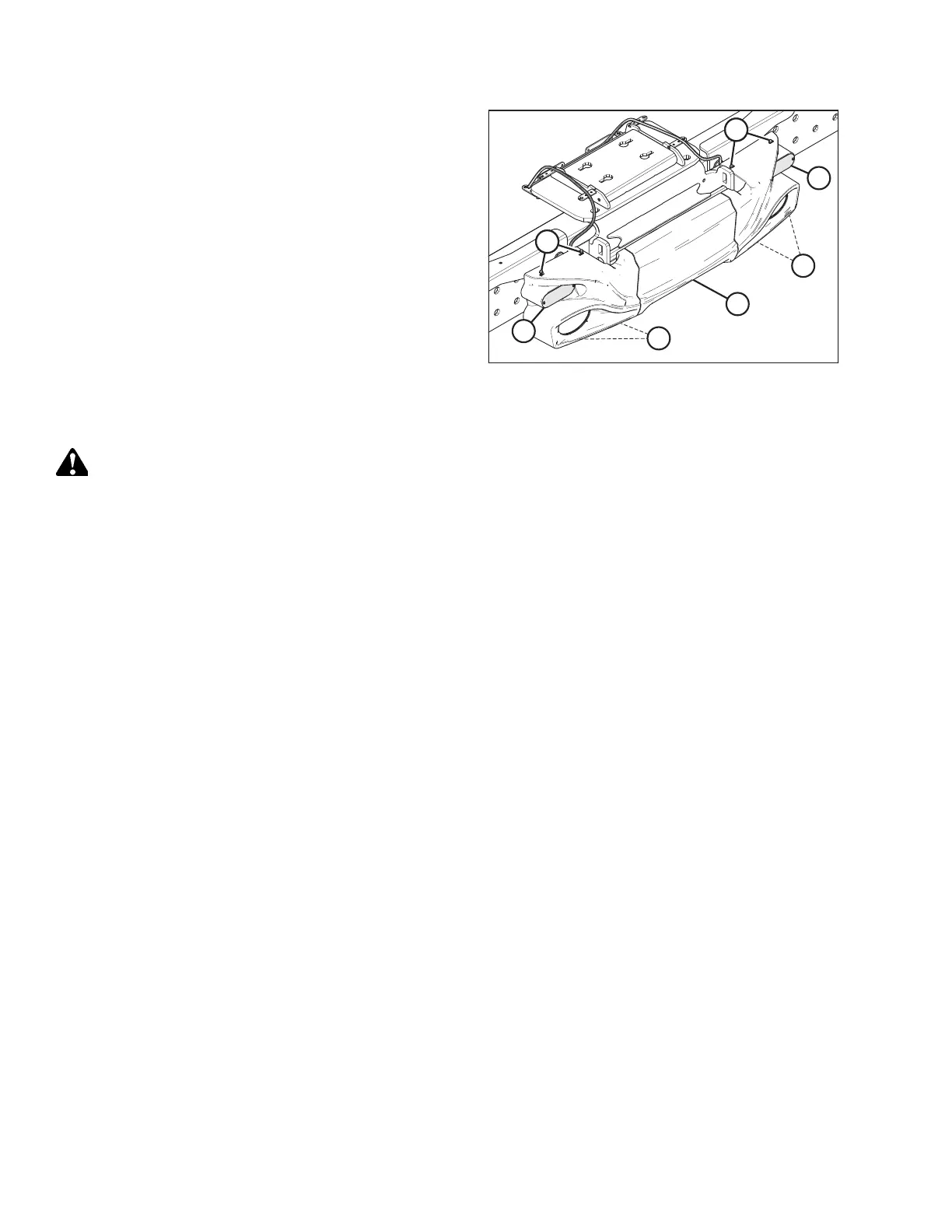

Figure 5.201: Headlight Bezel Assembly
12. Attach the electrical connectors to red tail lights (C).
13. Attach headlight bezel assembly (B) to the frame using the
eight retained hex flange bolts (A). Torque bolts to
2.0–2.7 Nm (18–24 lbf·in).
Replacing LED Lights – Deluxe Cab Only
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
The deluxe cab is equipped with the following LED lights:
• Four LED field lights (A)
• Two LED stubble lights (B)
• Two LED rear work lights (C)
NOTE:
The bulb of an LED light cannot be replaced. For replacement parts, refer to the windrower parts catalog or contact your
MacDon Dealer. To replace the LED lamp assembly, proceed to Step 1, page 456.
