215916 456 Revision A
1. Shut down the engine, and remove the key from the ignition.

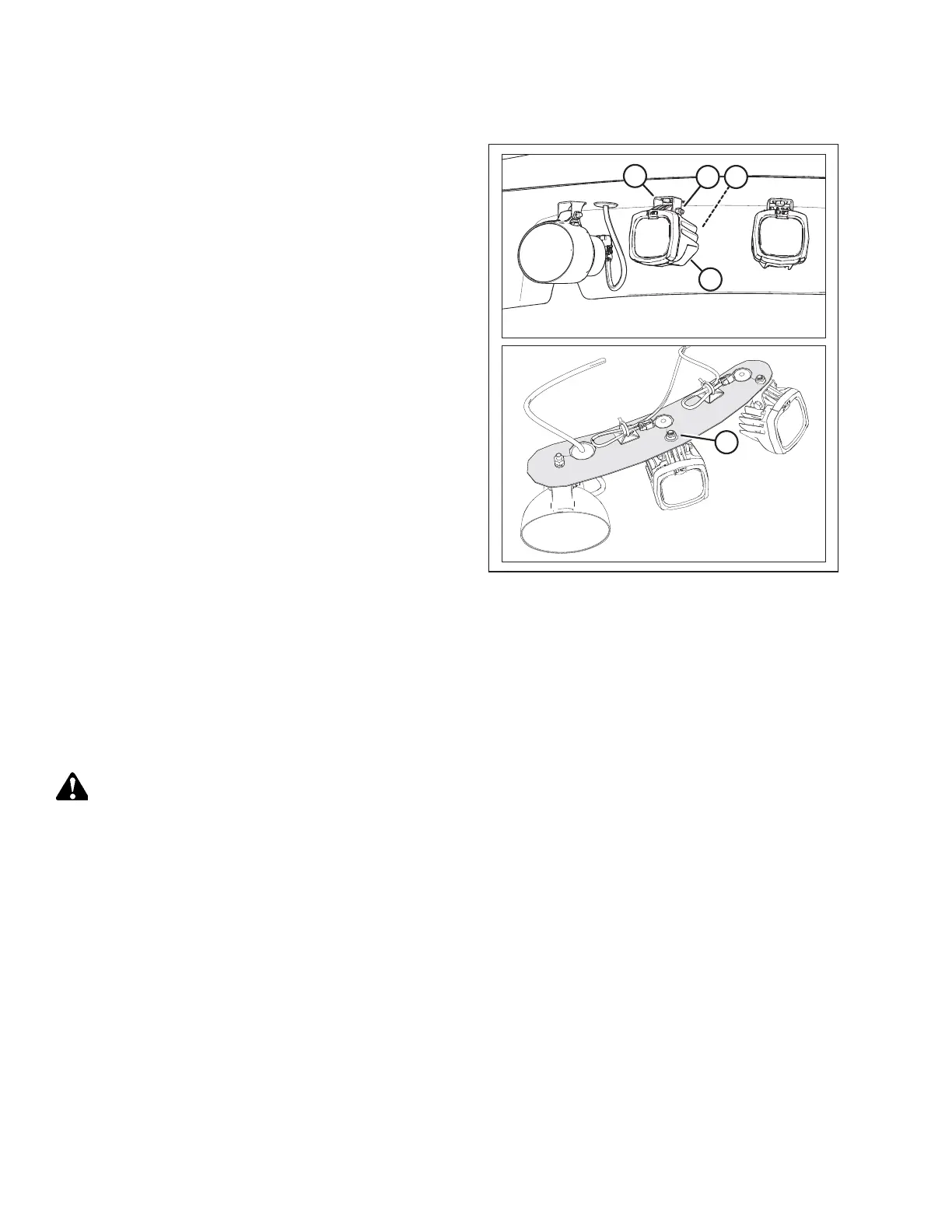

Figure 5.203: Front LED Work Light
2. Disconnect wiring harness (A).
NOTE:
If you do NOT have to also replace hinge bracket (C), then
follow Step 3, page 456 to Step 7, page 456. If you have to
also replace hinge bracket (C), then remove mounting
nut (E) inside the cab roof. This task requires two people:
• All cab-forward work lights: Remove the cab-forward
sun shade. Open the access panel in the headliner to
access the work light mounting nuts. Tighten mounting
nuts to 27 Nm (20 lbf·ft).
• Two rear right work lights: One work light is mounted
externally and is readily accessible. To remove the
mounting hardware for the other work light, remove
the radio panel from the cab. Tighten mounting nuts to
15 Nm (11 lbf·ft).
• Two rear left work lights: Contact your MacDon dealer
to have the headliner removed.
3. Remove bolt and nut (B) from hinge bracket (C).
4. Remove LED lamp assembly (D).
5. Mount new LED assembly (with its hinge bracket removed)
to existing hinge bracket (C) using bolt and nut (B).
6. Tighten hinge nut to 7.5 Nm (6 lbf·ft).
7. Reconnect the wiring harness.
Replacing Bulbs in Red and Amber Lights
To replace the bulbs in red and amber lights, follow these steps:
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
MAINTENANCE AND SERVICING
