215916 457 Revision A
1020038
A
B

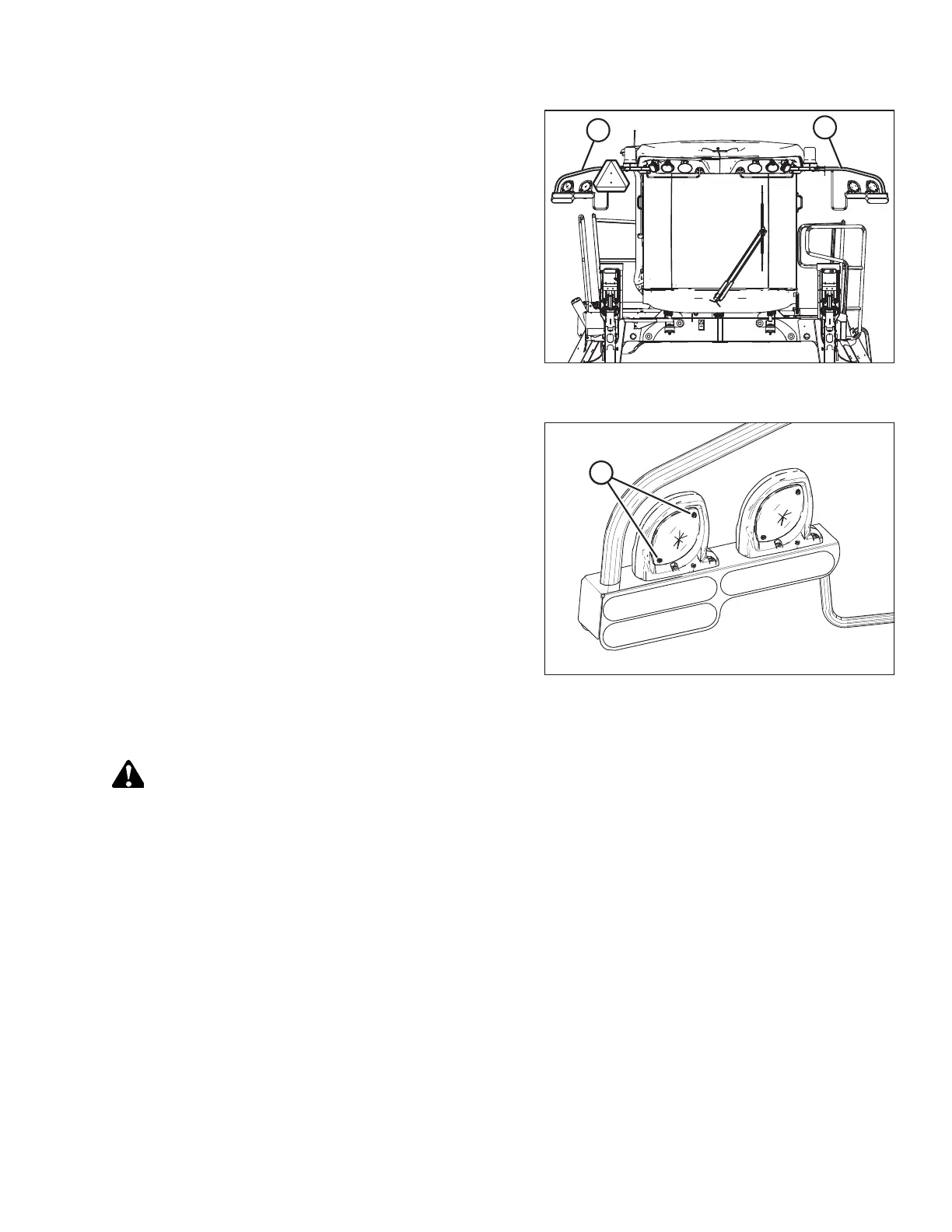

Figure 5.204: Cab-Forward Red and Amber Light
Locations
1. Shut down engine and remove key. Turn lights OFF.
NOTE:
Hold onto the handholds on the cab front corners and
stand on the header anti-slip strips, or stand on the
maintenance platform when accessing the red and amber
lights.
2. Use the left or right platform to access marker lights (A)
and (B) attached to the mirror arms.
1015898
B
A
Figure 5.205: Red and Amber Lights
3. Remove two screws (A) from the lens and remove the lens.
4. Push and twist the light bulb to remove it from the socket.
5. Install a new bulb in the socket, ensuring that the bulb base
is properly engaged in the socket.
• Use Bulb Trade #1157 for red tail lights
• Use Bulb Trade #1156 for amber lights
6. Reinstall the lens with screws (A).
Replacing Red Tail Lights
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from
the ignition.
2. Turn the lights off.
MAINTENANCE AND SERVICING
