215916 458 Revision A

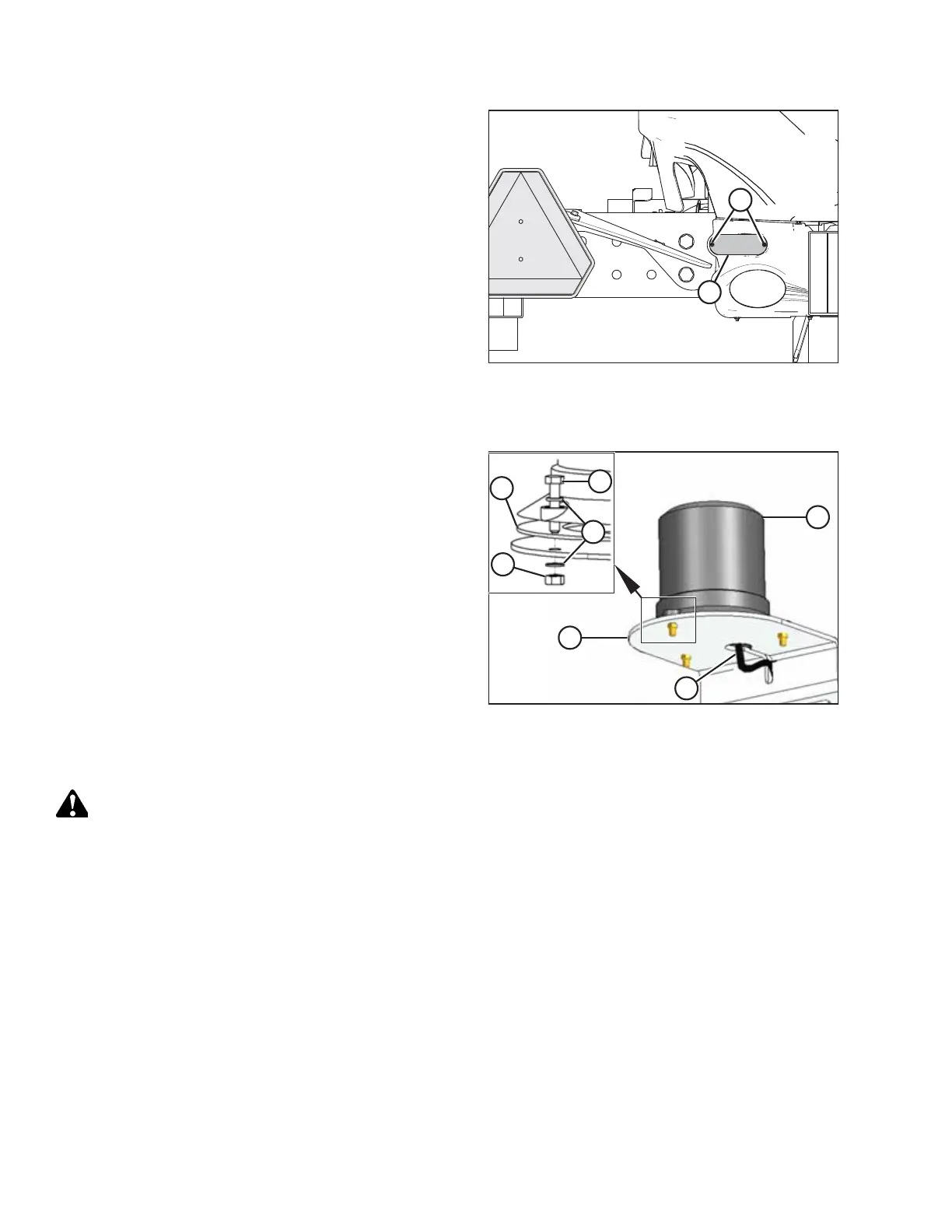

Figure 5.206: Red Tail Lights
3. Remove two hex flange bolts (A) from light (B), and remove
the light from the bezel.
4. Remove the electrical connector from light (B).
5. Connect the wiring harness to new light (B), and secure the
light to the bezel using two hex flange bolts (A).
Replacing Beacon Lights
Figure 5.207: Beacon Light Assembly
1. Disconnect wiring (A) from the harness.
2. Remove nuts (B) and remove beacon (C). Discard the
defective beacon and hardware.
3. Clean any residue from support (D) mounting surface.
4. Install new beacon (C) with gasket (E) onto the support.
Secure with bolts (F), washers (G), and nuts (B).
5. Torque the nuts to 0.65 Nm (0.48 lbf·ft).
Replacing Cabin Dome Bulb
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
MAINTENANCE AND SERVICING
