215916 472 Revision A

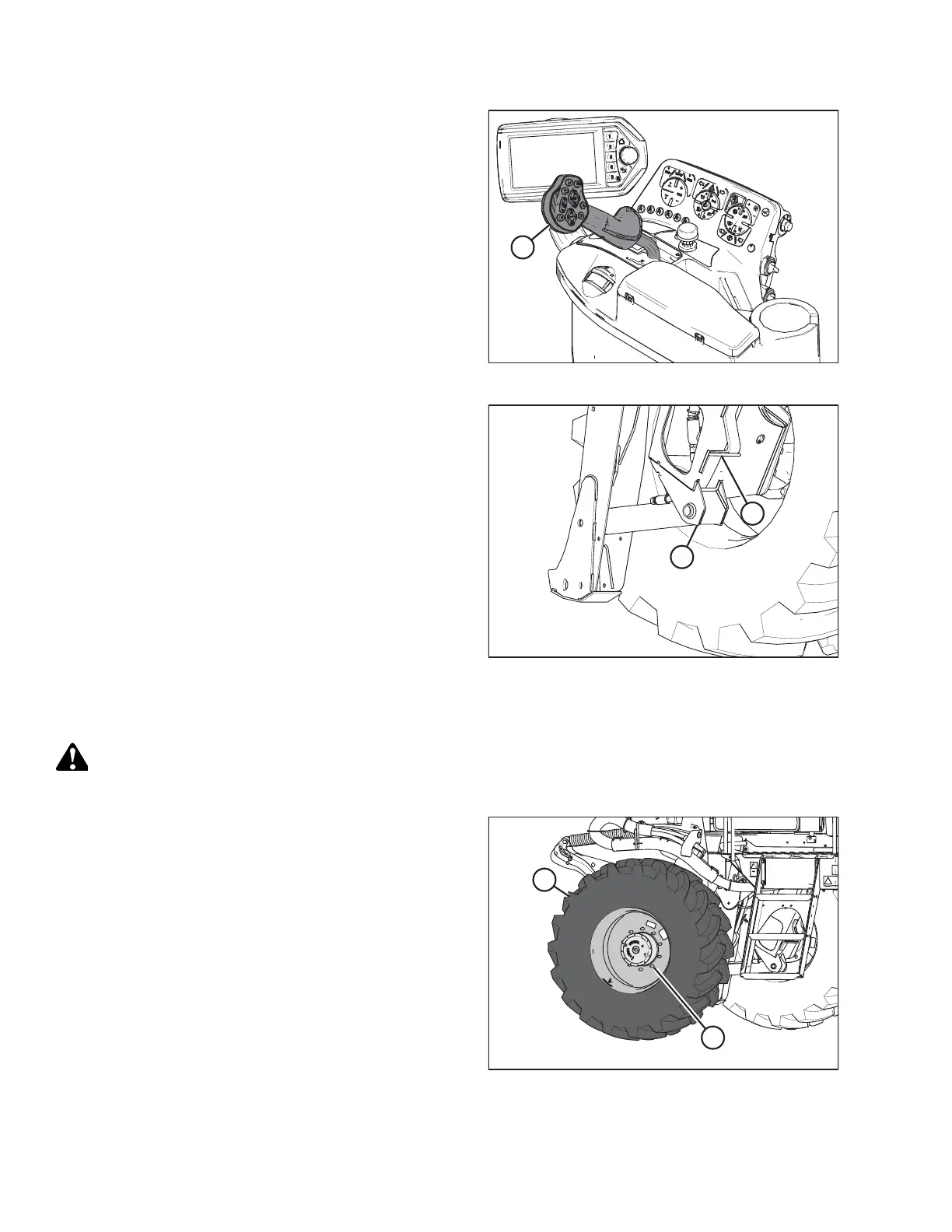

Figure 5.229: Ground Speed Lever
4. Place ground speed lever (GSL) (A) in PARK.
5. Shut down the engine, and remove the key from
the ignition.
Figure 5.230: Drive Wheel Jack Point
6. Place a jack under the leg jack point (A). Raise the drive
wheel until it is slightly off the ground.
7. Place a jack stand beneath lift cylinder mount (B).
NOTE:
Do NOT place the jack stand under the cylinder. Use a small
metal plate on top of the jack stand.
8. Lower the windrower onto the jack stand.
Removing Drive Wheels
CAUTION
Use a suitable lifting device capable of supporting a minimum of 907 kg (2000 lb.) to lift the wheel assembly away from
the windrower.
Figure 5.231: Drive Wheel Assembly
1. Raise windrower drive wheel (A) off the ground. For
instructions, refer to Raising Drive Wheel, page 471.
2. Remove wheel nuts (B).
3. Remove drive wheel (A).
MAINTENANCE AND SERVICING
