215916 33 Revision A
2.3 Windrower Dimensions
When transporting a windrower, it is sometimes important to know that windrower’s outside dimensions.
G
H
K
J
D
E
F
A
B
C
1016012

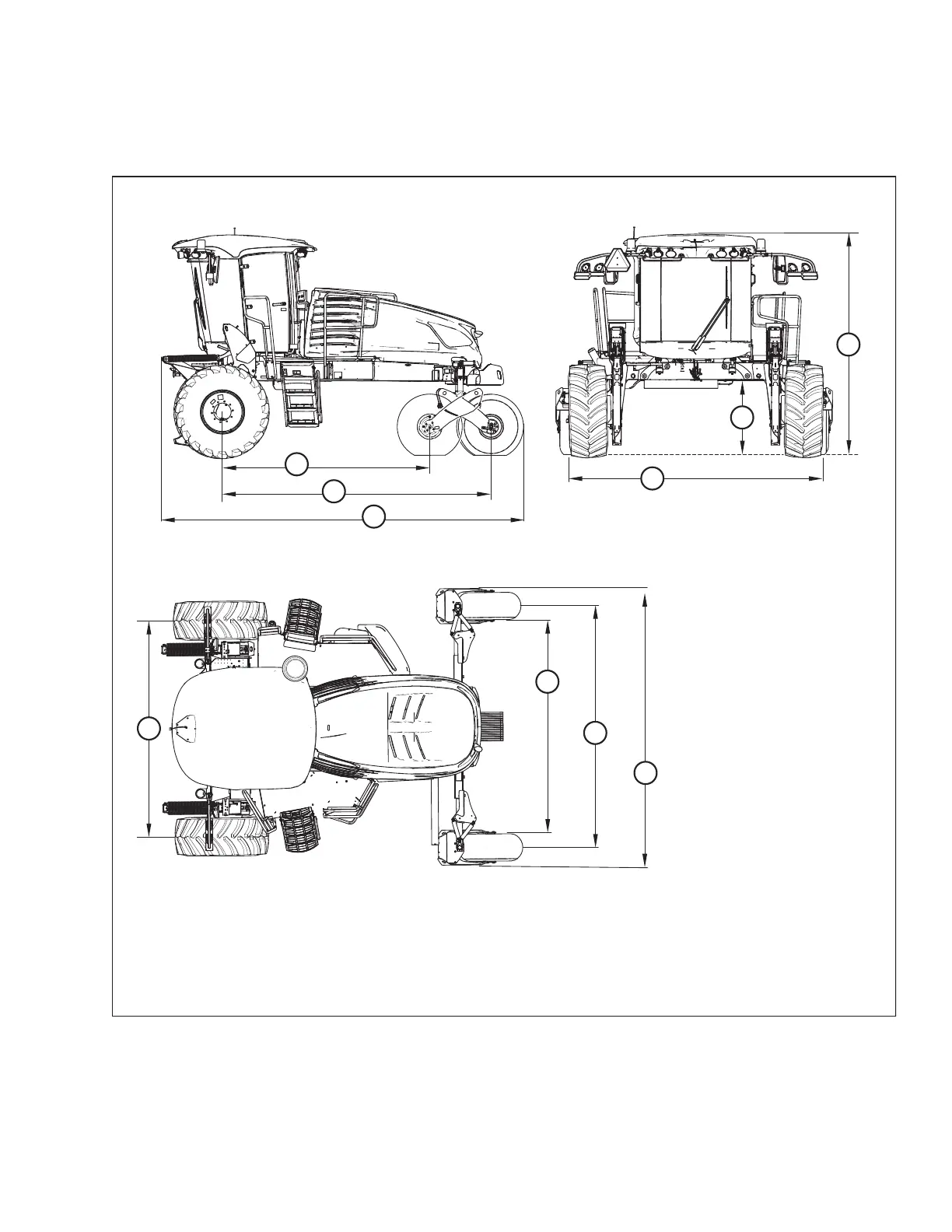

Figure 2.1: Windrower Dimensions
A - 3304 mm (130 3/32 in.) B - 4290 mm (168 7/8 in.) C - 5752 mm (226 7/16 in.)
D - 4070 mm (160 1/4 in.) E - 1160 mm (45 11/16 in.) F - 3480 mm (137 1/32 in.)
G - 3449 mm (135 13/16 in.) H - 3422 mm (134 3/4 in.) J - 3856 mm (151 13/16 in.) (Max)
K - 4415 mm (173 13/16 in.)
PRODUCT OVERVIEW
