3.7 Lighting
The field and road light switches are located on the operator’s console.
C
1019424
A
B
C
D

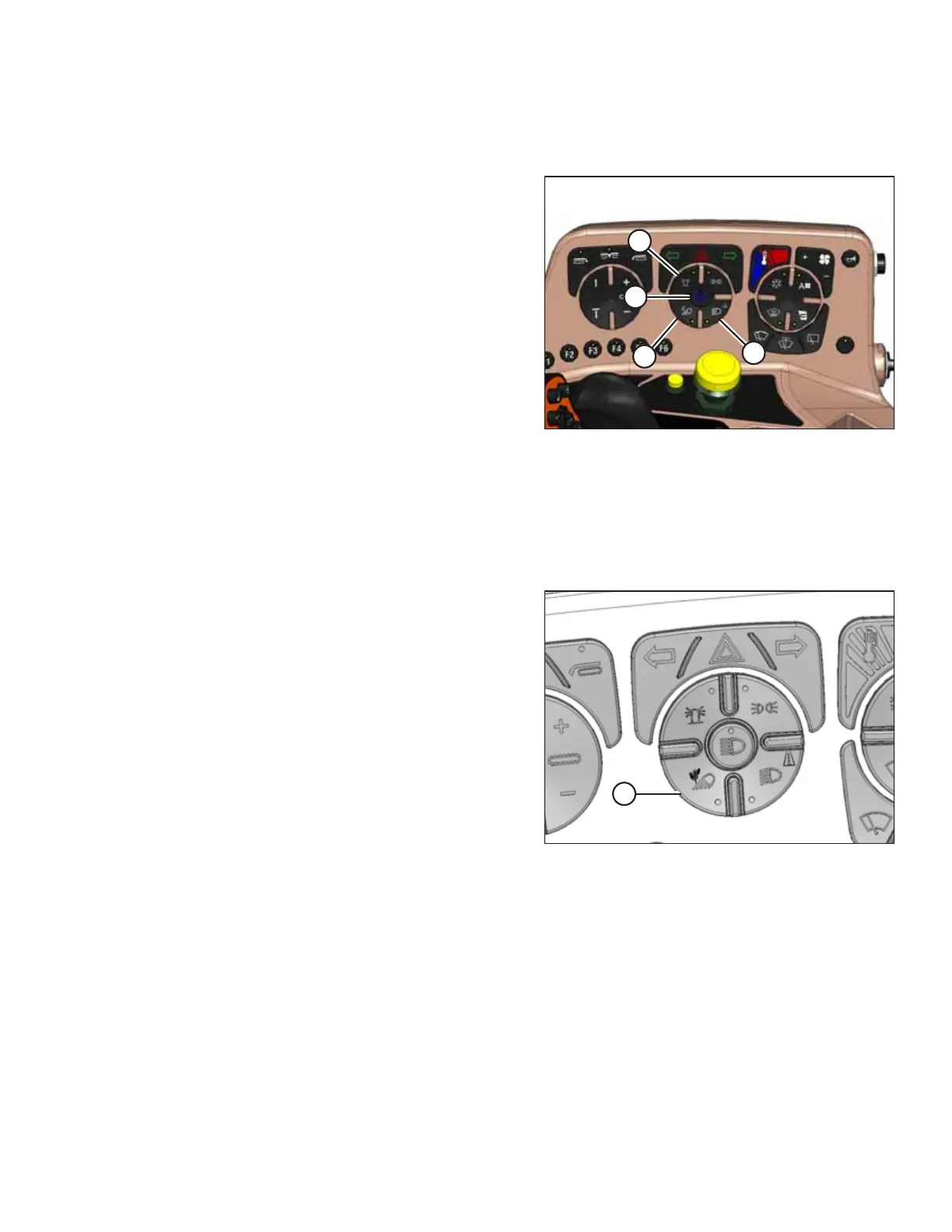

Figure 3.21: Light Switches
A - Road Lights B - Field Lights
C - Low or High Beams D - Beacons
The position of the operator’s station (cab-forward or engine-
forward) automatically determines which lights are active when
the lighting mode is selected.
NOTE:
When in engine-forward mode, Field lights (B) do NOT turn on.
An LED on the switch changes from OFF to amber when the
switch is on. The high beam switch has a blue LED that changes
from OFF to blue when the switch is on.
3.7.1 Cab-Forward Lighting – Field
When operating in the field, lights are used to light up the header and field when it gets dark out.
1019668
A
Figure 3.22: Field Light Button
The following lights are on when FIELD LIGHT button (A) is
selected and the operator’s station is locked in cab-
forward mode:
OPERATOR’S STATION
