Legend
1 P
ower supply cord
2 P
ower supply handle
Remove a Power Supply
1
Remove the pow
er supply by grasping the power supply handle and
pushing the power supply latch to the left.

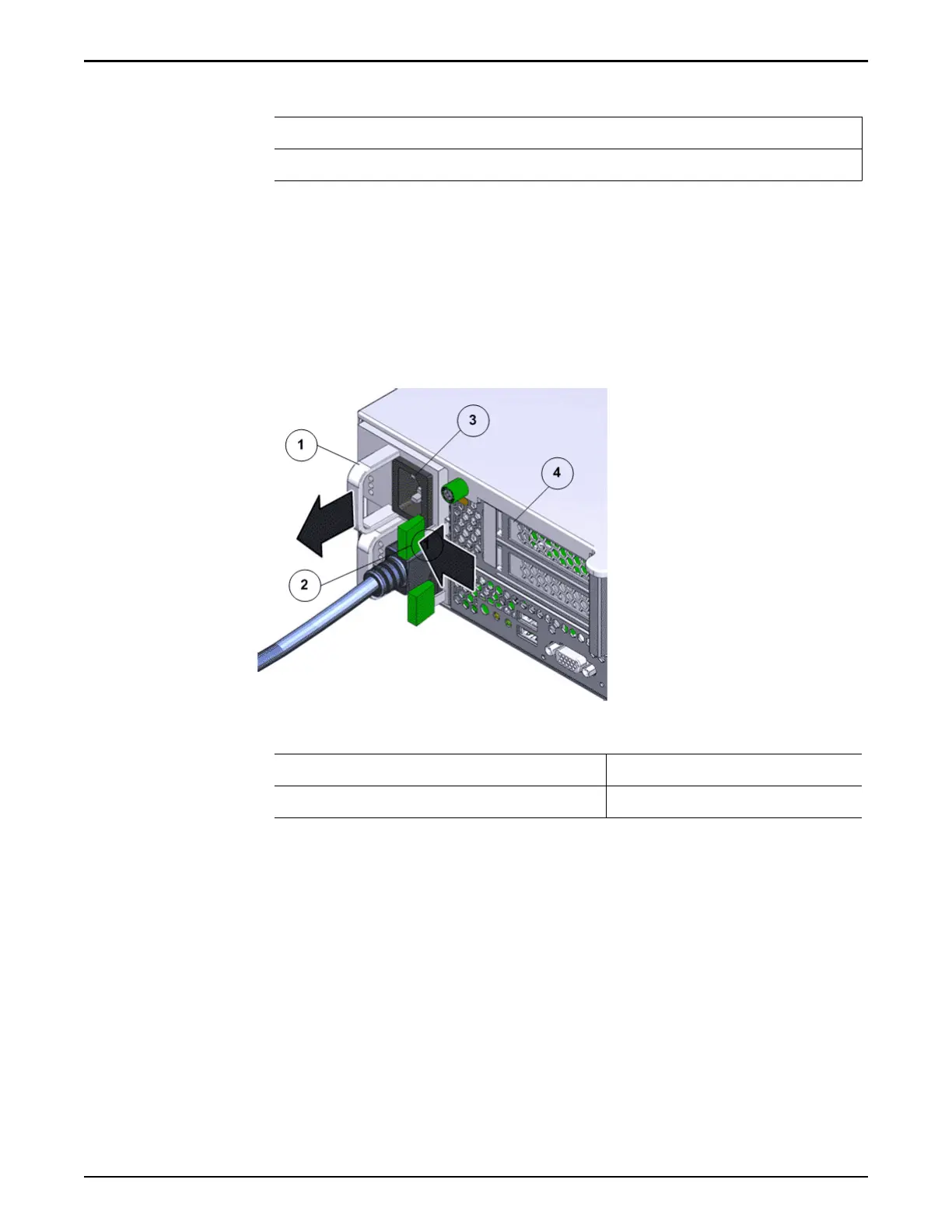

Figure 74: Controller power supply latch
Legend
1 P
ower supply handle
3 P
ower supply
2 P
ower supply latch
4 Controller back
Controller Replacement Procedures
106
105
107
