Oracle FS1-2 - Figure 52: Slide Rails Oriented with the Ball Bearing Track; Figure 53: Slide Rail Assembly Aligned with the Rack

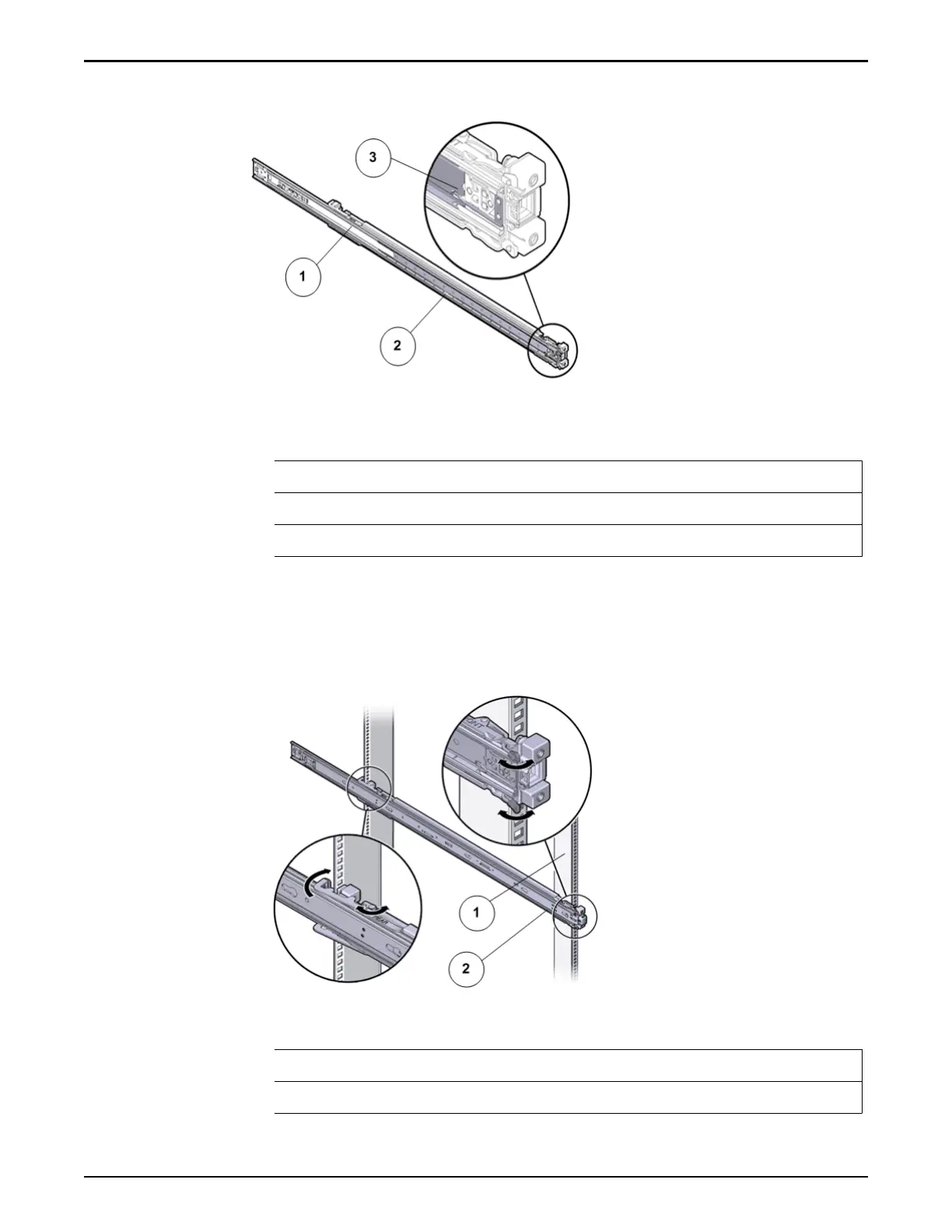

Figure 52: Slide rails oriented with the ball bearing track
Legend
1 Slide rail
2 Ball bearing track
3 Locking mechanism
6 Starting with either the left or right side of the rack, align the rear of the
slide-rail assembly against the inside of the rear rack rail, and push until
the assembly locks into place with an audible click.
Figure 53: Slide rail assembly aligned with the rack
Legend
1 Back of the rack
2 Slide rail
