Insert a DIMM
Press the DIMM fully into the DIMM slot and ensure that the tabs on both
sides of the DIMM are locked.

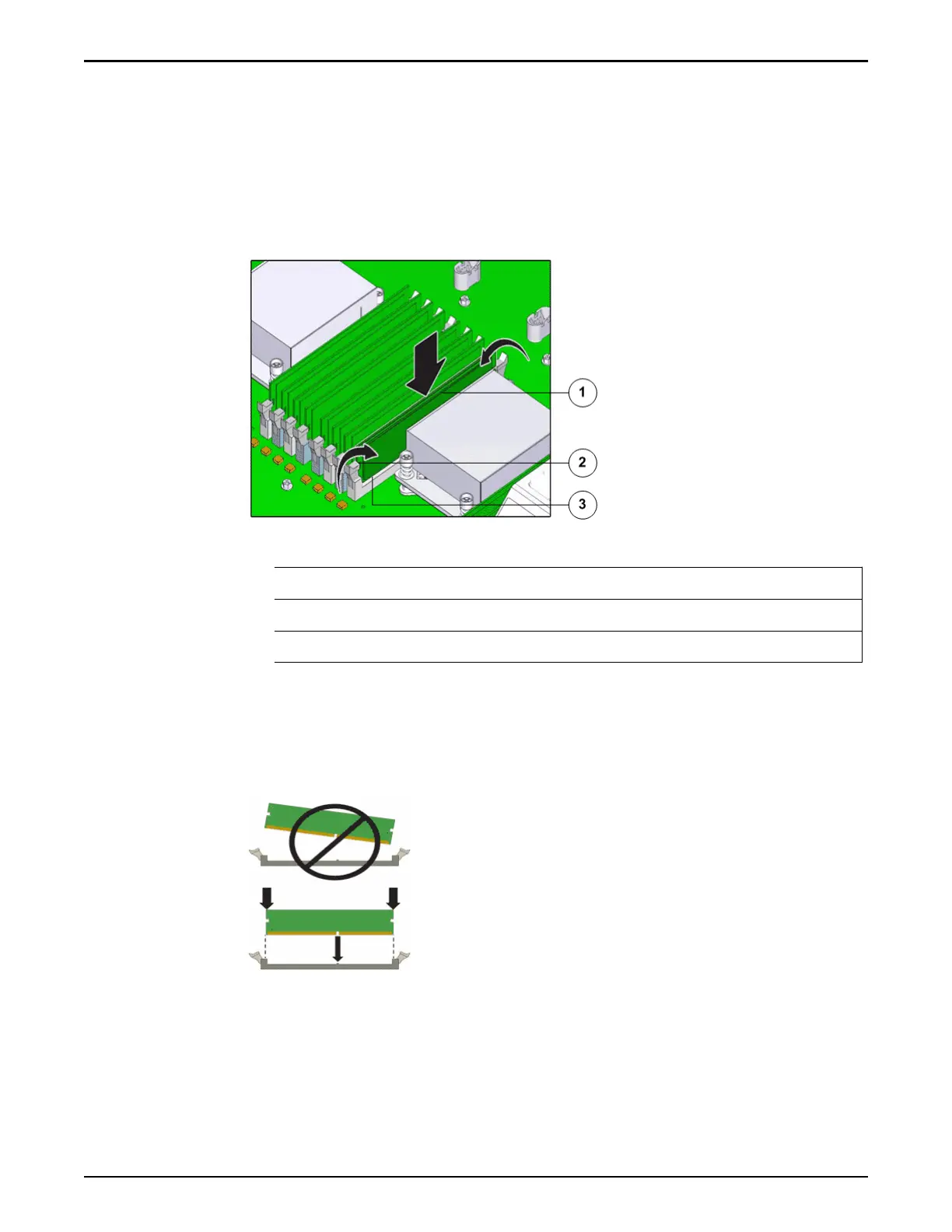

Figure 115: Insert Controller
DIMM
Legend
1 DIMM
2 Tabs to secure DIMMs
3 DIMM notch aligns with the DIMM slots
Note: While inserting DIMMs, ensure that there is no interference with the
cables. Pulling or pressing down on the cables might cause damage to the
cables during the replacement procedure.
Figure 116: DIMM alignment over DIMM slots
Important: Ensure that the notch in the DIMM lines up with the key in the
slot.
Note: Replace only one DIMM at a time to make sure that they are inserted
into the correct slots.
Aempting to insert multiple DIMMs into the slots
might damage the DIMMs due to excessive exure.
Controller Replacement Procedures
148
