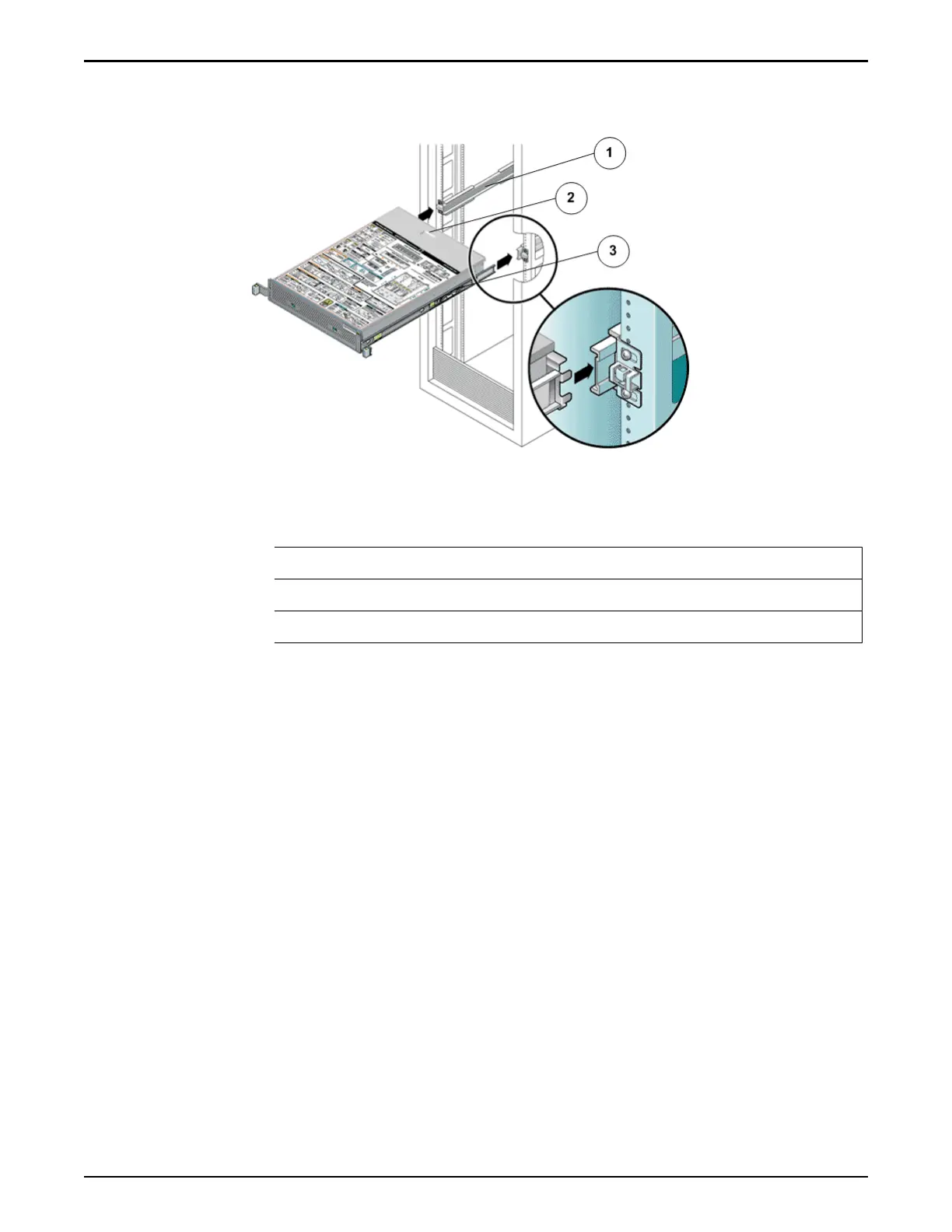

Figure 21: Controller chassis mounted on the slide rails
Legend
1 Slide rails
2 Controller chassis
3 Mounting brackets
Caution: W
ork with a partner or use a mechanical lift for assistance. The
Controller weighs approximately 70 lbs (31.75 kg). Two people are
required to carry the chassis.
14 Simultaneously release the rail locks on each side of the sliding rails, and
guide the Controller chassis into the rack.
Caution: Verify that the Controller is securely mounted in the rack, and
that the slide rails are locked to the mounting brackets, before continuing.
Install the Controller CMA
The cable management arm (CMA) clips into the ends of the left and right
Controller slide rail assemblies. No screws are necessary for mounting the CMA.
The right sides of the two CMA arms have hinged extensions. On the
manufacturer's instruction sheet, the smaller extension is called the CMA
Connector for Inner Member. It aaches to the right mounting bracket. The larger
extension is called the CMA Connector for Outer Member, and aaches to the
right sliding rail.
Note: The CMA shown in the graphics might vary slightly from the CMA
shipped with your product.
Oracle FS1–2 Global Procedures
54
