Oracle FS1-2 - Reconnect Controller Cabling

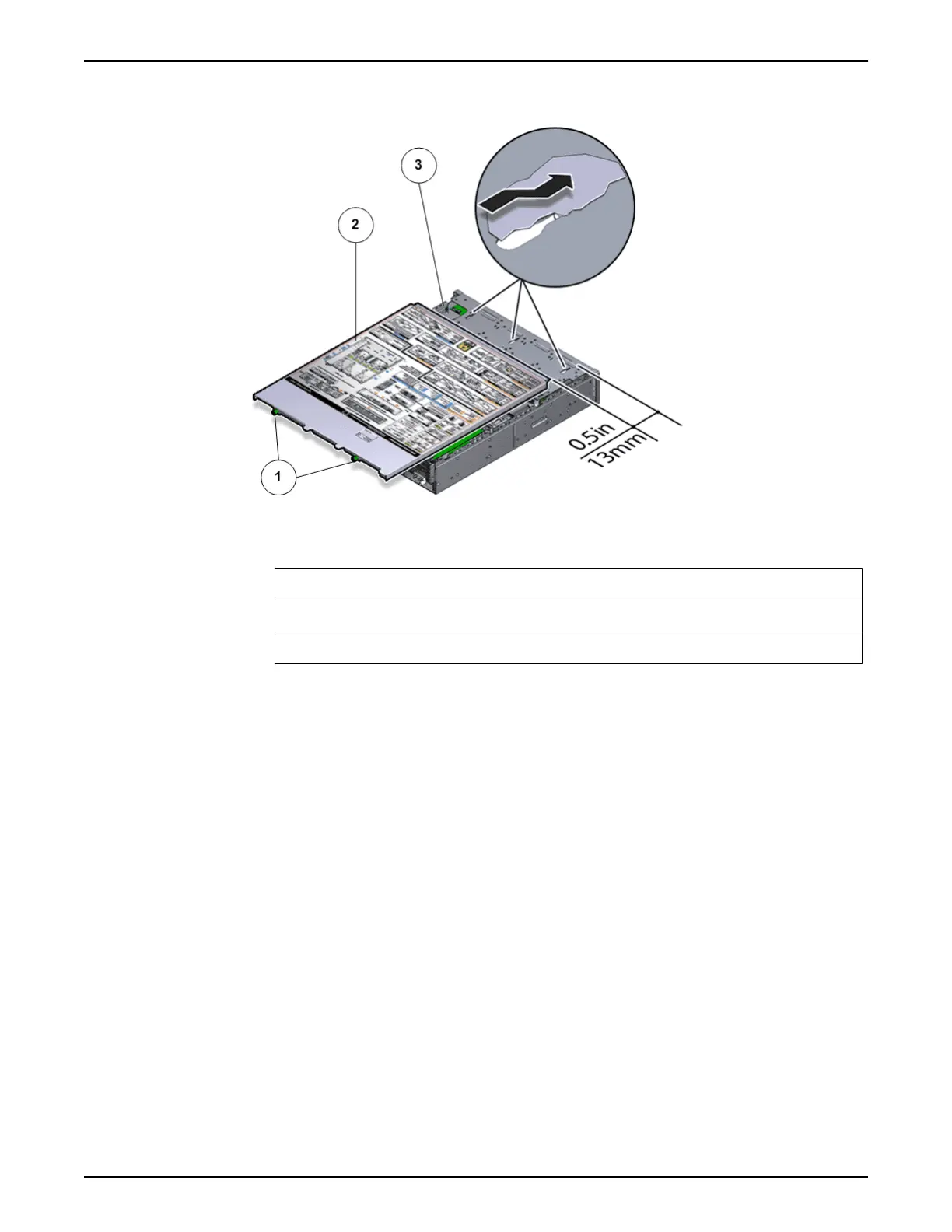

Figure 101: Close Controller top cover
Legend
1 Thumb screws
2 Controller top cover
3 Controller
Reconnect Controller Cabling
1
Reconnect all the data cables on the Controller.
Note: Oracle Customer Support recommends labeling all cables connected
to the Controller so that the cables can be reconnected accurately to the
Controller after the replacement procedure is complete.
2 Reconnect the CMA to the Controller by aaching the release tab on the
left and right side of the CMA.
Complete the Component Replacement
1 Slide the Controller back into rack position.
2 Re-connect the cables that were removed from the Controller.
Note: The Controller automatically powers up when the power cords are
plugged in.
