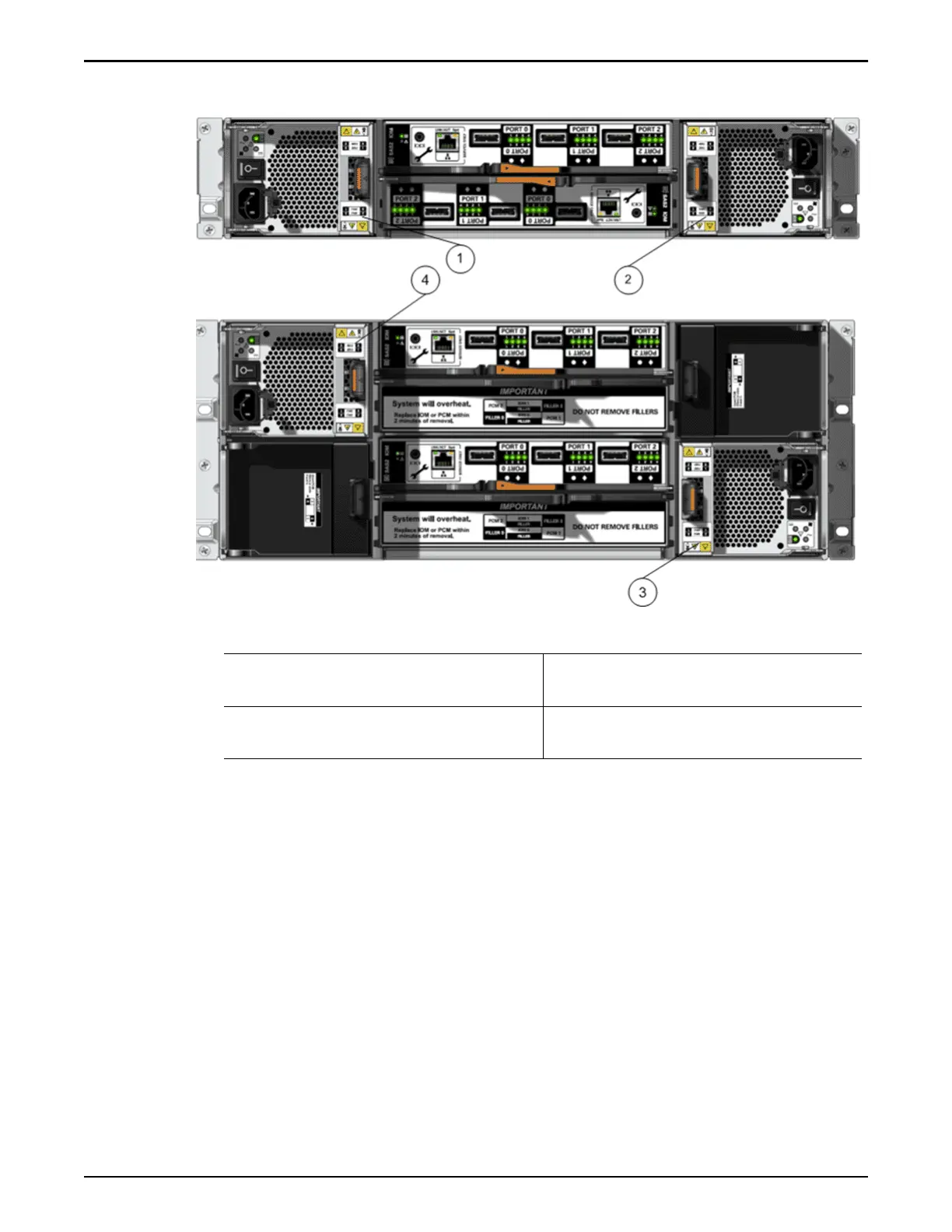

Figure 138: Power cooling modules (DE2-24P and DE2-24C Drive Enclosures)
Legend
1 Power cooling module 0 (DE2-24P
Driv
e Enclosure)
3 Power cooling module 0 (DE2-24C
Drive Enclosure)
2 Power cooling module 1 (DE2-24P
Drive Enclosure)
4 Power cooling module 1 (DE2-24C
Drive Enclosure)
Caution: Make sure y
ou can replace the FRU or CRU within 10 minutes of
removing the FRU or CRU. Do not remove a FRU or CRU if you cannot replace it
within 10 minutes with a FRU or CRU or with a ller panel. If a FRU or CRU slot
is left empty, the system can overheat due to improper airow.
Procedure Overview
1 Prepare a Drive Enclosure for Component Replacement
2 Remove a Power Cooling Module
3 Insert a Power Cooling Module
4 Verify the Status of a Drive Enclosure Component
Prepare a Drive Enclosure for Component Replacement
1 From Oracle FS System Manager (GUI), navigate to System > Hardware.
2 Select Drive Enclosures.
Drive Enclosure Replacement Procedures
