Legend
1 Push buon to release top cover
2 Grooves to slide out top cover
2 Lift the cov
er o the Pilot chassis and set it aside.
Remove a SAS HBA
1 Press on the retention clip that secures faceplate of the riser and release the
riser from the Pilot motherboard.
Note: There are three riser board assemblies inside the Pilot chassis. The
SAS HBA is located on the third riser and the other risers are empty.
Caution: Do not disconnect the SAS cable from the internal SAS HBA until
after you have removed the riser from the Pilot.
2 Carefully pull up the PCIe riser lever on the riser to release the riser and
HBA card (if any).

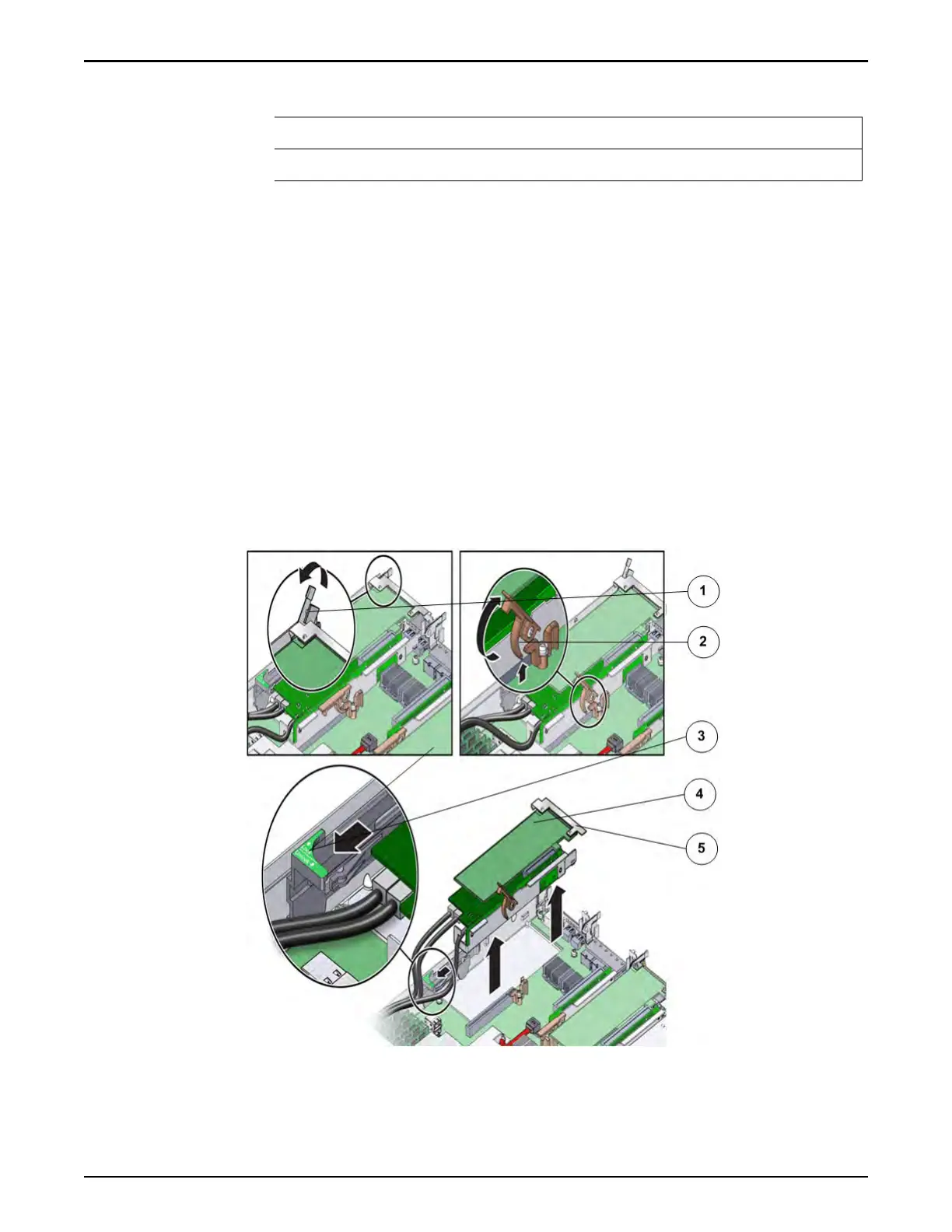

Figure 160: Remove the riser
Pilot Replacement Procedures
191
