Legend
1 Drive carrier handle DE2-24C
Driv
e Enclosure
2 Drive carrier handle DE2-24P
Drive Enclosure
2 Slide the drive all the way into the Drive Enclosure chassis slot.

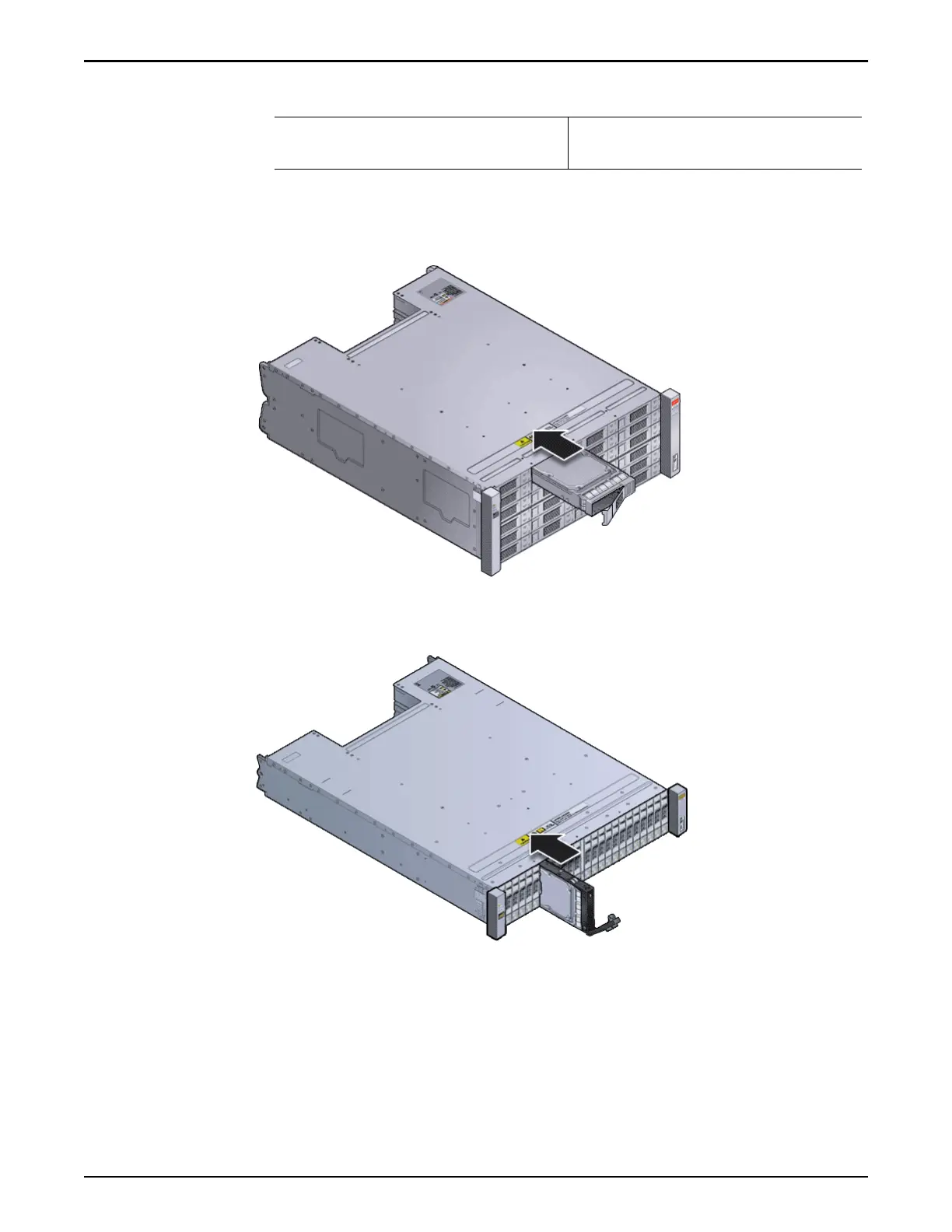

Figure 131: DE2-24C Drive Enclosure and inserted drive
Figure 132: DE2-24P Drive Enclosure and inserted drive
3 Press the drive carrier handle closed until it locks into place.
Verify the Status of a Drive Enclosure Component
1
From Guided Maintenance, verify that the status of the component is
Normal.
Guided Maintenance displays a message stating the component status. A
status of Normal requires no action.
Drive Enclosure Replacement Procedures
161
