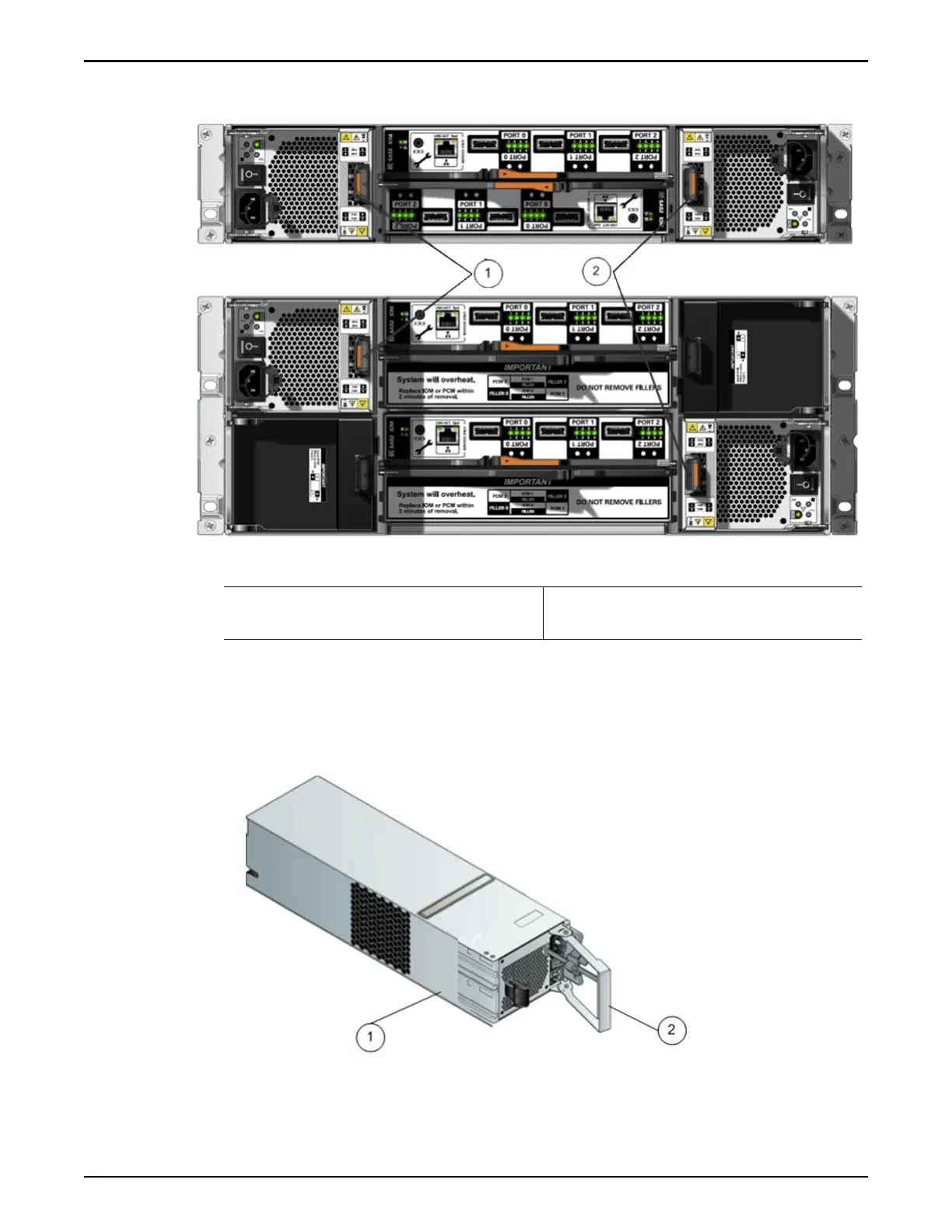

Figure 140: Power cooling module orientation
Legend
1 Latch on the left power cooling
module
2 Latch on the right power cooling
module
1 With the aachment lever fully open, orient the power cooling module so
that the latch aligns with the inner area of the Drive Enclosure and slide
the power cooling module into the chassis slot.
Figure 141: Power cooling module with a fully open attachment lever
Drive Enclosure Replacement Procedures
