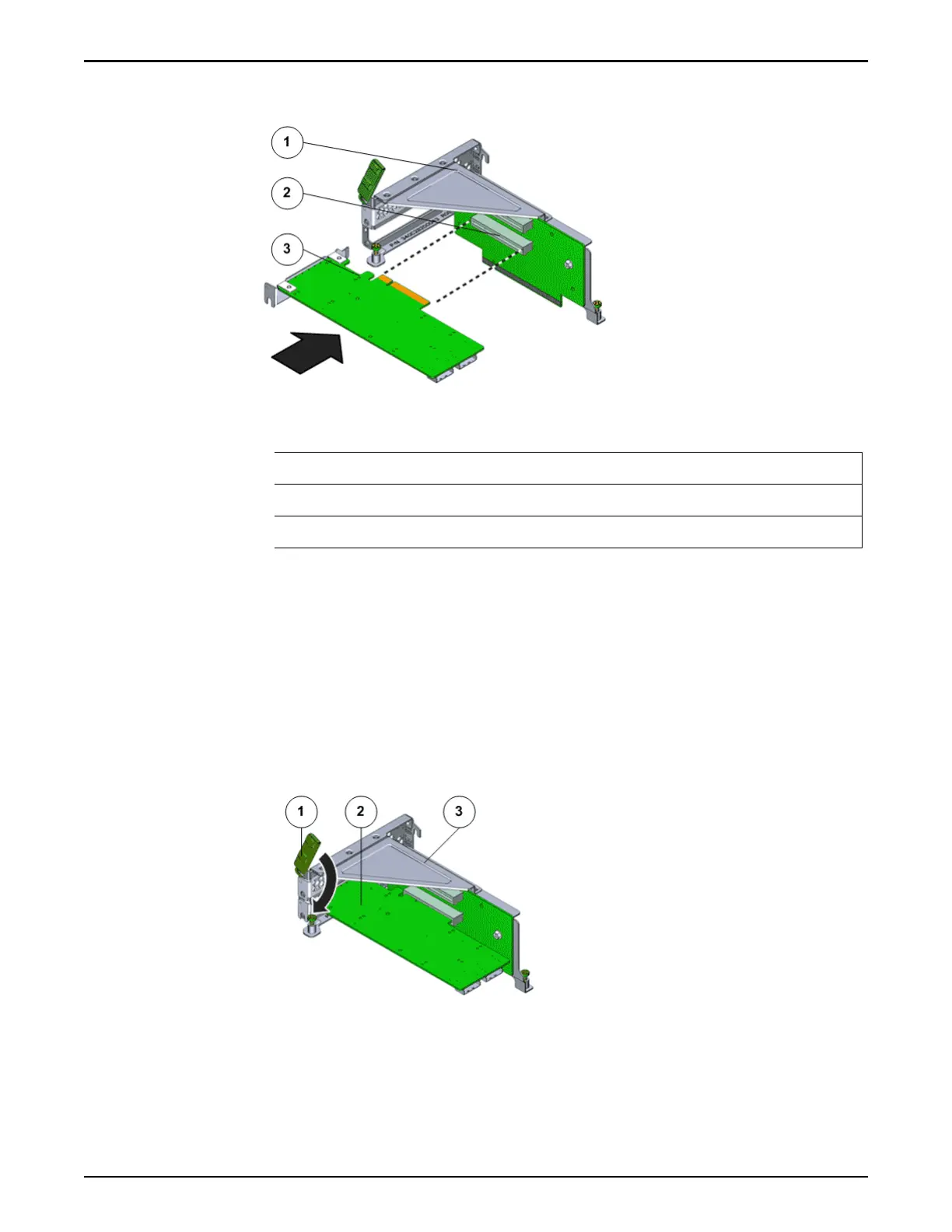

Figure 96: Insert HBA into riser slot
Legend
1 Riser
2 Riser slots
3 HBA
4 Apply rm pressure on each end of the HBA
alternately until it clicks into
place in the riser socket.
Caution: Support the HBA and the riser as necessary to prevent excessive
exure. Otherwise, the HBA or the riser card might be damaged.
5 When all HBAs have been installed in this riser, swing the retainer latch to
its fully closed position. If there is resistance, check the alignment of the
HBA and try again.
Figure 97: HBA retainer latch
Controller Replacement Procedures
131
