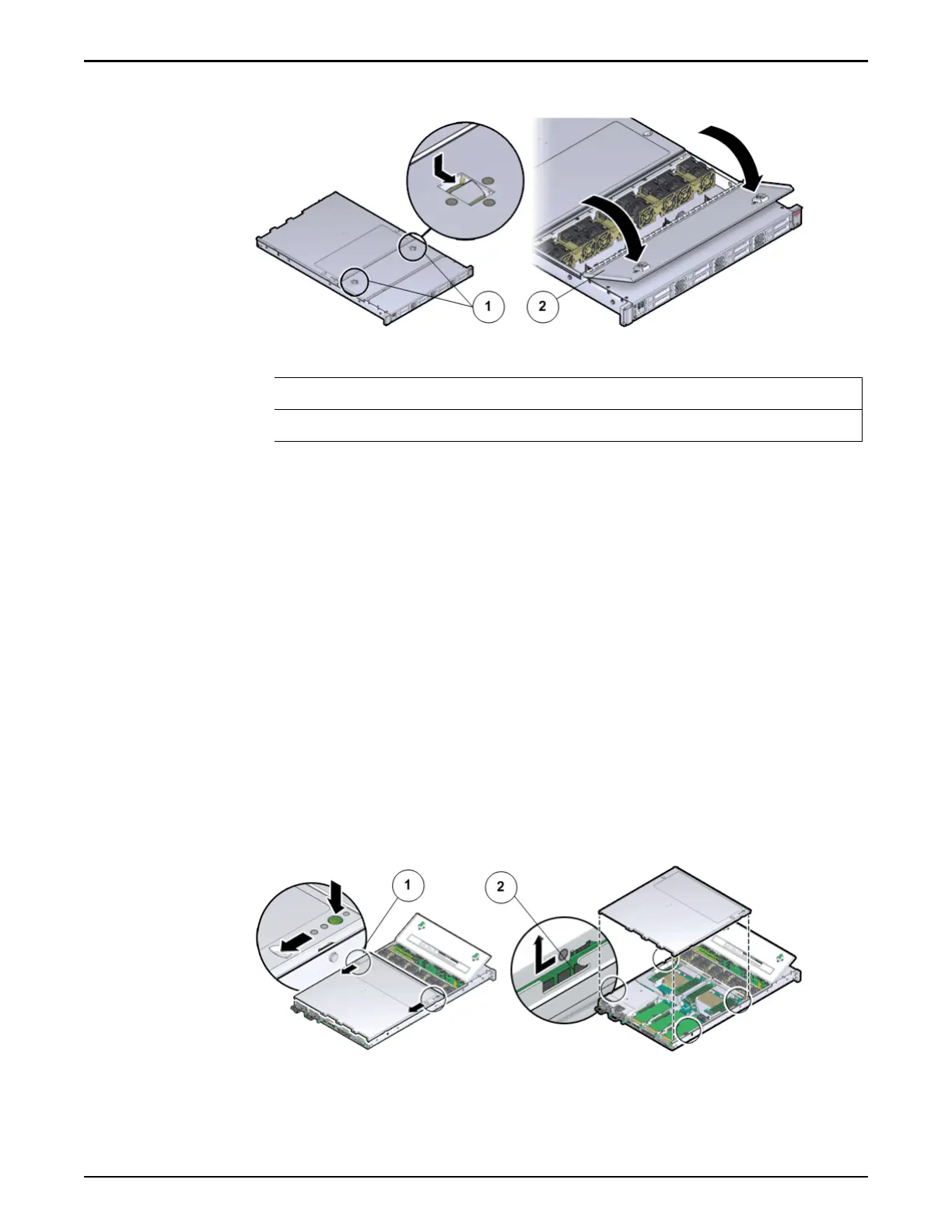

Figure 158: Pilot with fan door open
Legend
1 Fan door release tabs
2 Pilot fan door in open position
Caution: Close the Pilot fan door within 60 seconds to maintain adequate
airow to properly cool the serv
er.
Open Pilot Top Cover
1 Press down on the push buon on the Pilot top cover to release the top
cover and use the recessed areas to slide the top cover toward the back of
the Pilot about 0.5 inches (12.7 mm).
Caution: Before removing the top cover of the Pilot, power o the Pilot
using Guided Maintenance. Removing the Pilot top cover before powering
o the Pilot might cause damage to the operating system on the Pilot.
Tip: Slide out the Pilot top cover by pressing down on the grooves located
on both sides of the cover.
Figure 159: Pilot top cover removal
Pilot Replacement Procedures
190
