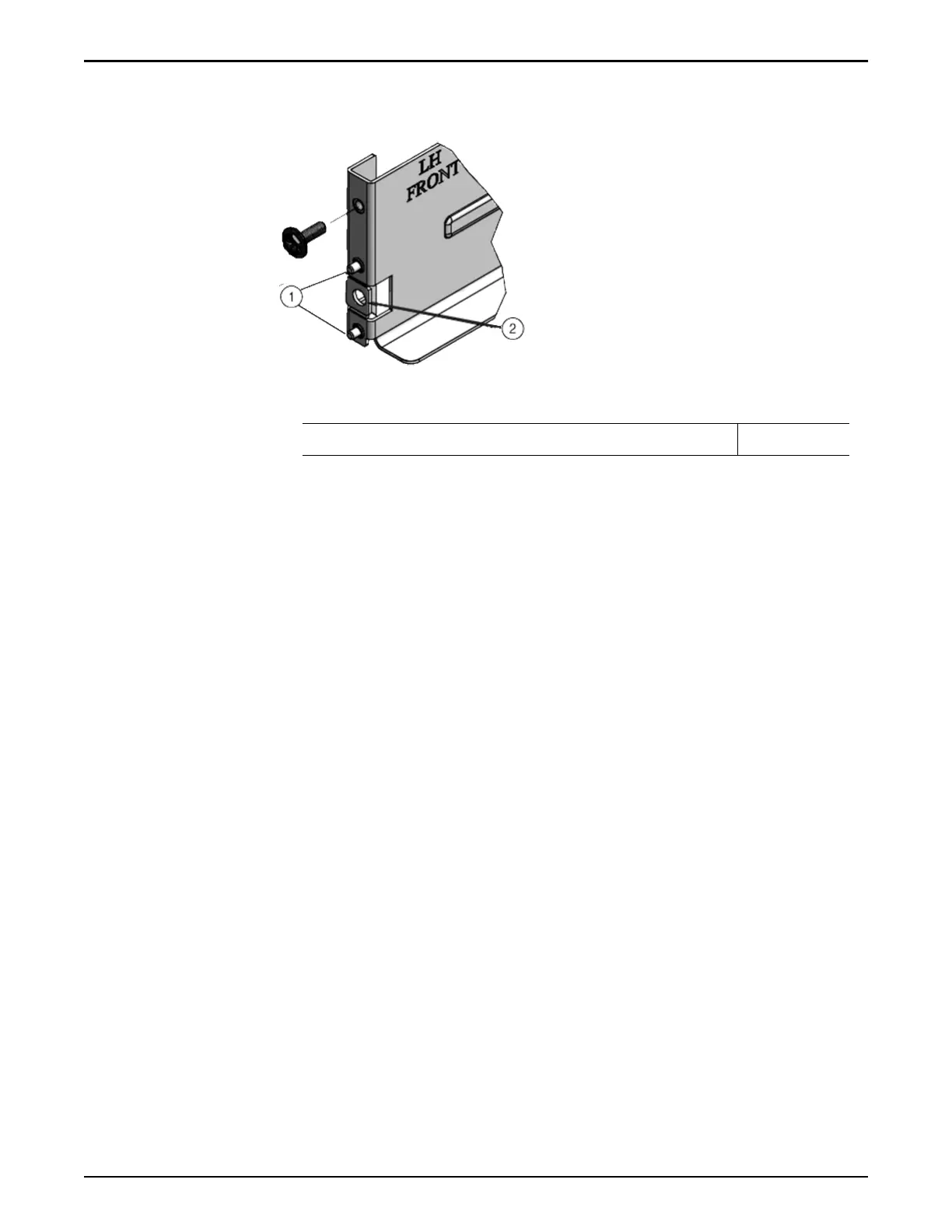

Figure 40: Rail-location pegs from inside of the rail flange and the clip
nut
Legend
1 Rail location pegs from inside of the rail ange 2 Clip nut
5 Position the front of the rails inside of the rack.
Make sure the rail ange aligns with the inside of the rack ange and the
rail label faces the inside of the rack.
Square-hole racks
The rail-location pegs t inside of the rack holes.
Round-hole rack
The special screws t inside of the rack holes.
Threaded-hole rack
The rail-location pegs t inside of the rack holes.
The following gure shows an example of the rail-location pegs inserted
into a square-hole rack.
Oracle FS1–2 Global Procedures
73
