Install the Rack Rails for the Pilot
Install the rack rails on the rack prior to installing the
Pilot.
Prerequisite:
Ensure that y
ou have adequate room to work around the rack while installing the
rails and the Pilot.
1 Place the rack-mount installation card against the front rails to identify the
correct mounting holes for the slide rails.

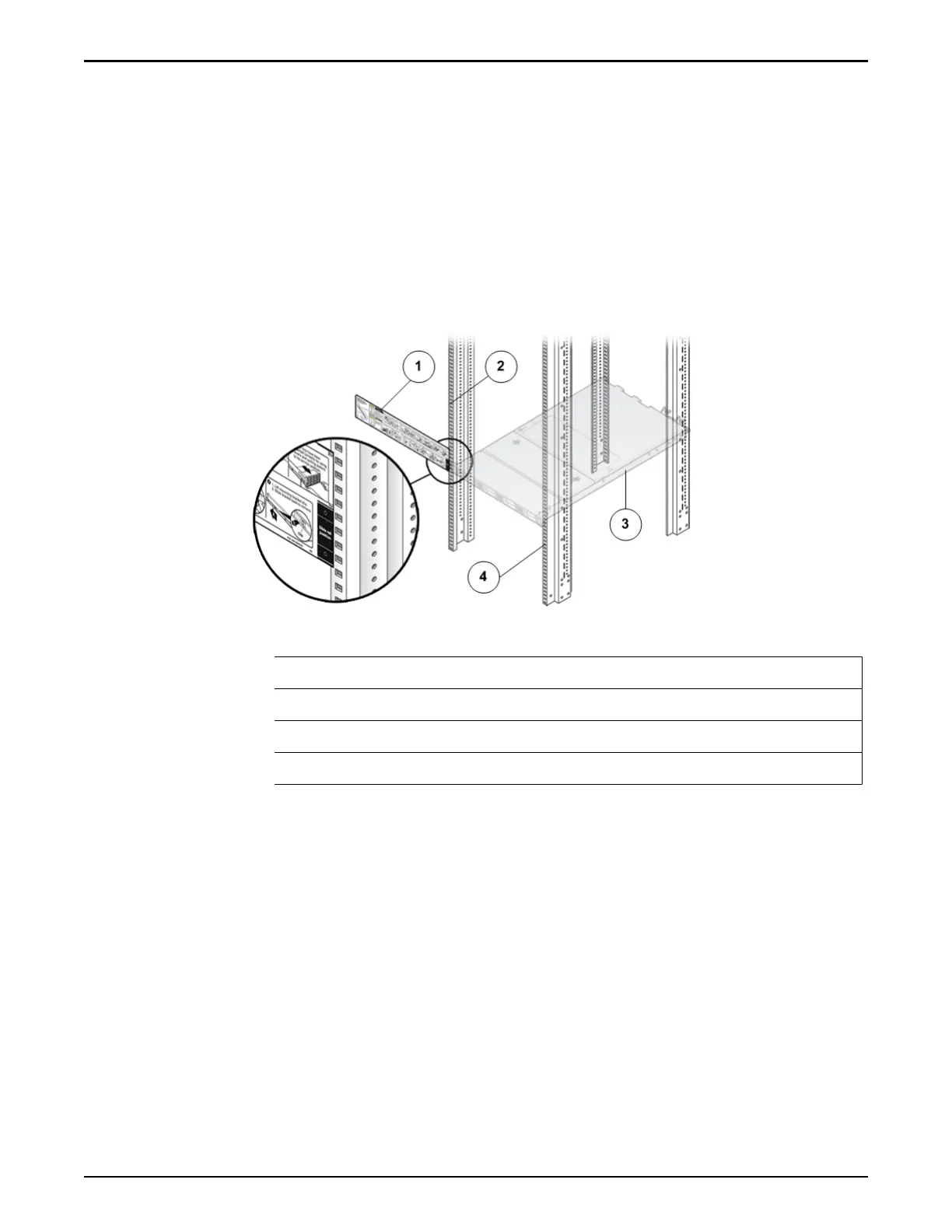

Figure 51: Rack-mount installation card template
Legend
1 Installation card
2 Rack mount hole
3 Pilot chassis
4 Front rack post
Note: The Pilot requires one standard rack units (1U) of v
ertical space.
Tip: The boom edge of the installation card must correspond to the
boom edge of the Pilot. Measure up from the boom of the installation
card.
2 Mark the mounting holes for the front slide rails.
3 Mark the mounting holes for the back slide rails.
4 Remove the rails from the packaging.
5 Orient the slide-rail assembly so that the ball bearing track is forward and
locked in place.
