Legend
1 Riser retainer latch
2 HBA
3 Riser
6 Repeat the procedure for any additional PCIe3 HBAs that might be
installed in the other risers.
7
Reconnect any cables that had been disconnected from the HBAs.
Note: Make sure that disconnected cables from the HBAs are connected to
their original ports.
Insert a Riser
1 Lower the riser onto the Controller motherboard and press the riser edge
connector securely into the socket.
Important: Ensure that any HBAs that must be removed from the failed
riser and placed onto the replacement rise are inserted into the same slots
on the replacement riser.

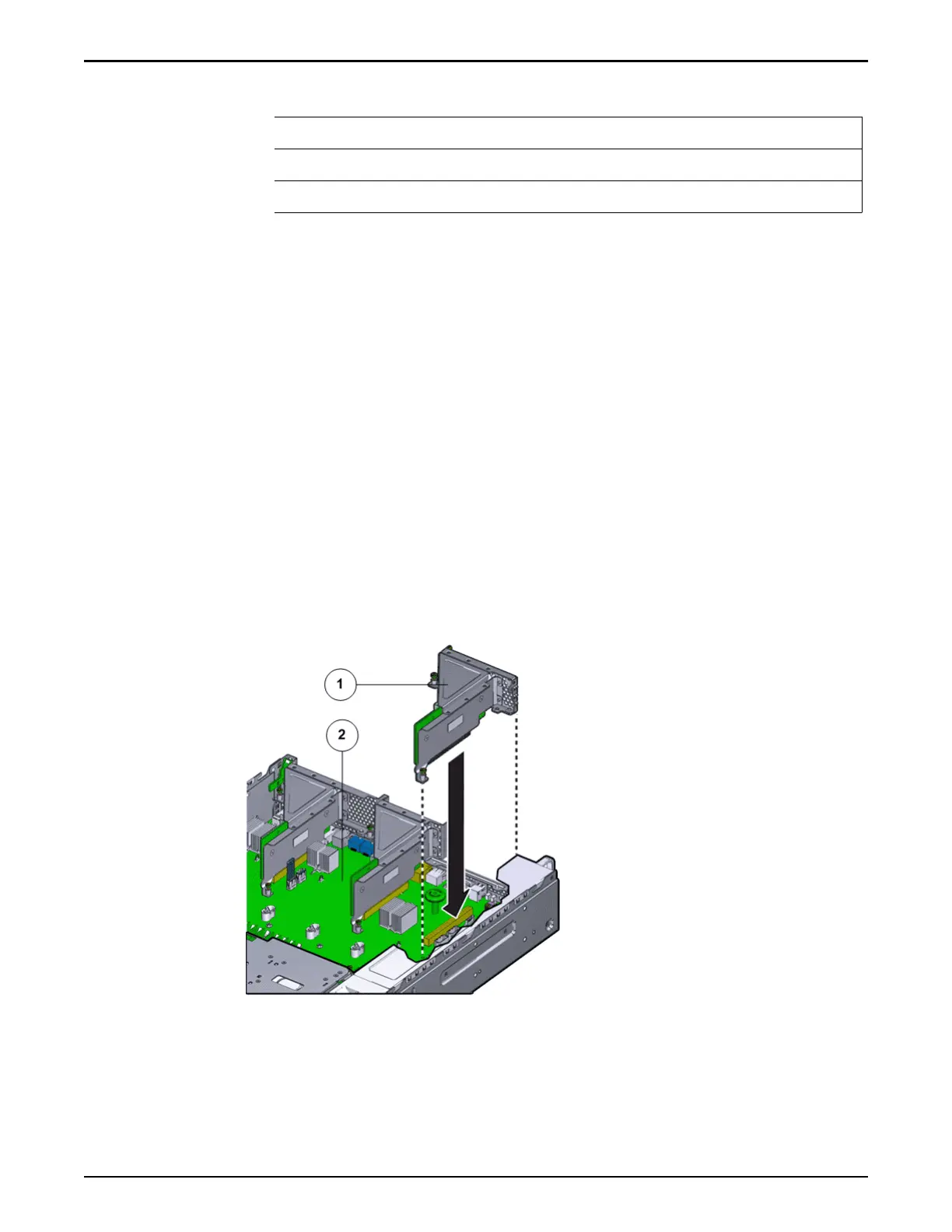

Figure 98: Insert riser
Controller Replacement Procedures
132
