7 Align the front of the slide-rail assembly against the outside of the front
rack rail, and push until the assembly locks into place with an audible
click.
8 Repeat steps to aach the slide-rail assembly to the other side of the rack.
Related Links
Pilot Rail Kits
Install the Slide Rails for the Pilot
Install the slide rails with mounting brackets on to the Pilot
chassis before
inserting it into the rack.
1 Position a mounting bracket against the Pilot chassis so that the slide rail
lock is at the Pilot front, and the ve keyhole openings on the mounting
bracket are aligned with the ve locating pins on the side of the Pilot
chassis.

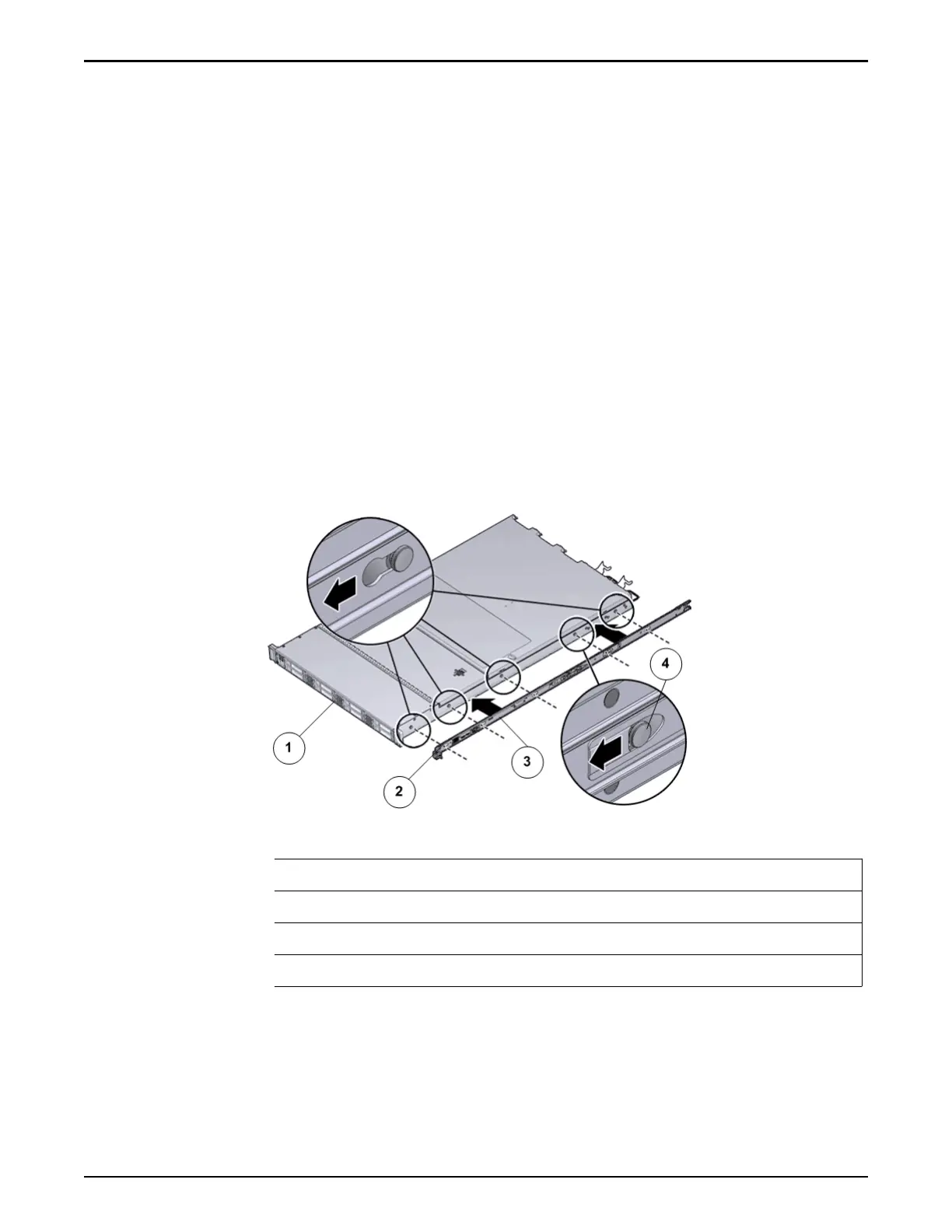

Figure 54: Mounting bracket aligned with the Pilot chassis
Legend
1 Pilot chassis front
2 Slide rail lock
3 Mounting bracket
4 Mounting bracket clip
2 W
ith the heads of the ve chassis locating pins protruding though the ve
keyhole openings in the mounting bracket, pull the mounting bracket
toward the front of the Pilot chassis until the mounting bracket clip locks
into place with an audible click.
Oracle FS1–2 Global Procedures
84
