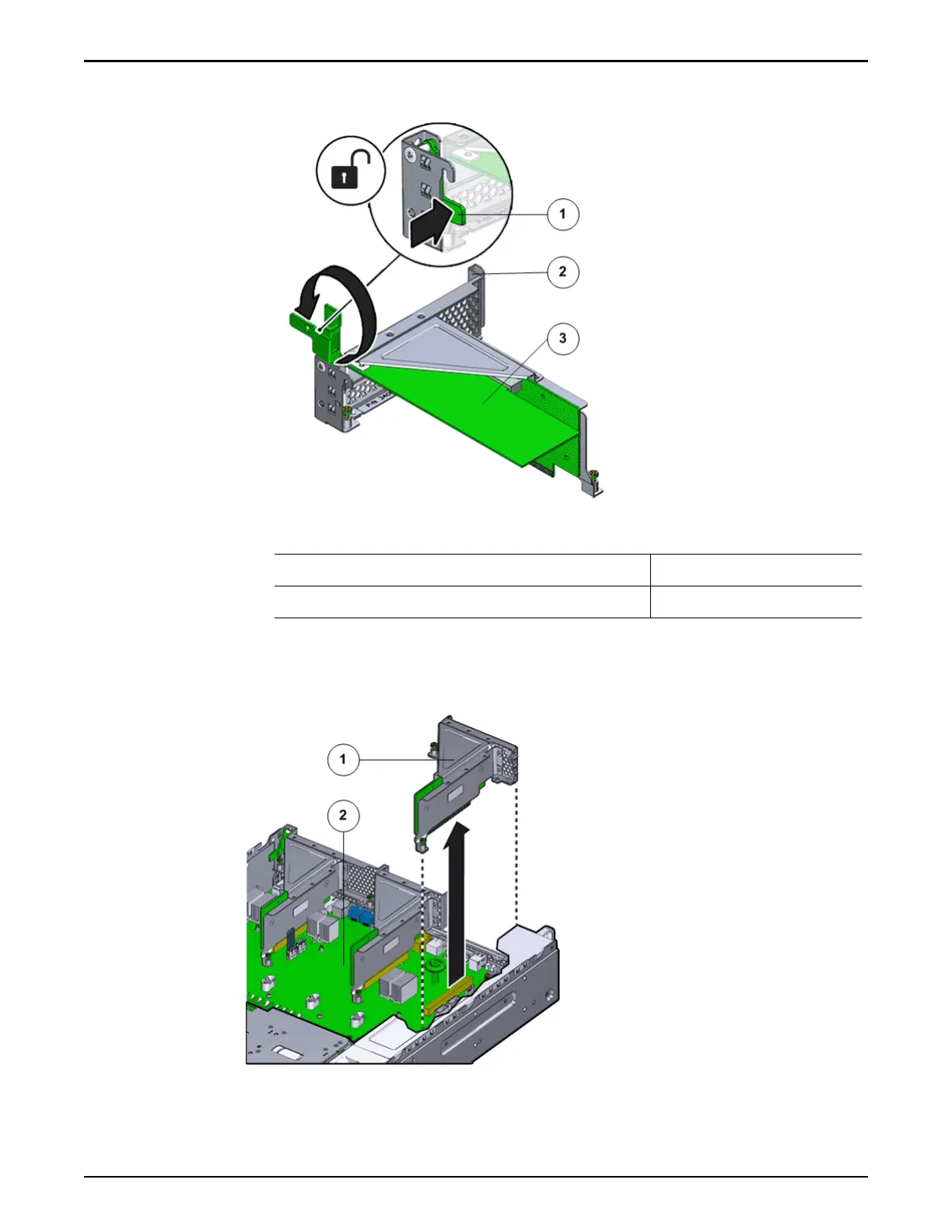

Figure 82: Unlock Riser 3 latch
Legend
1 Riser 3 latch 3 HBA
2 Riser 3
4 Carefully pull the riser straight up and place it aside.
Figure 83: Remove riser
Controller Replacement Procedures
116
