Legend
1 Thumb screws that secure the backplane
2 Backplane
Note: Use the screwdriv
er very carefully to avoid damaging the electrical
circuitry inside the Controller.
3 Raise the backplane and drive compartment to the vertical position.

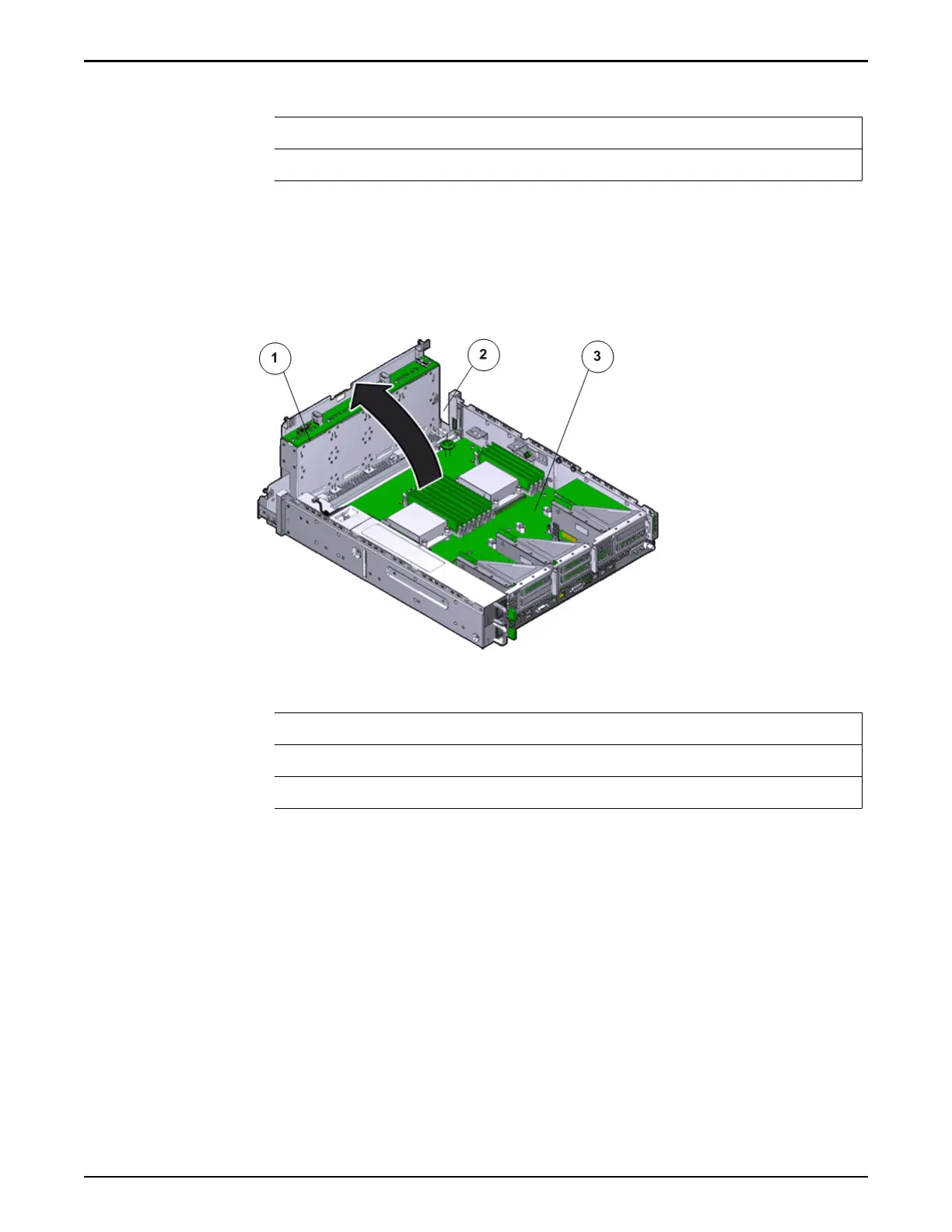

Figure 111: Drive compartment raised
Legend
1 Backplane
2 Drive compartment
3 Controller motherboard
Remove an Air Duct
1
Remove the air duct by loosening the two brackets and the Phillips
Number 2 thumb screws on both sides of the air duct.
Controller Replacement Procedures
145
