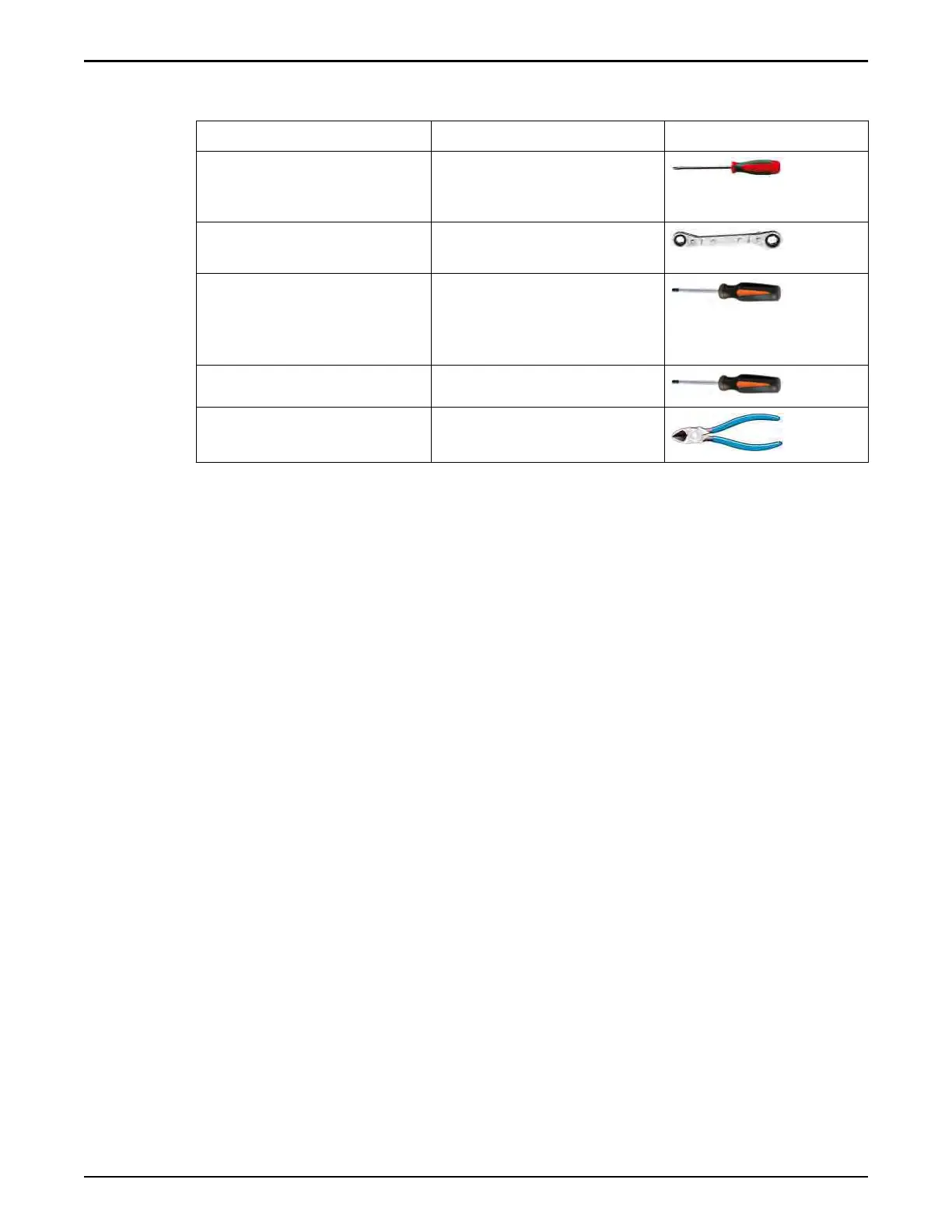

Table 6: Required tools
Tool Purpose Illustration
#1 and #2 Phillips
screwdriv
ers
Remove and secure Oracle
Flash Storage System
hardware components.
Oset box wrench, 13/32
inches (10 millimeters)
Work with adjustable
mounting rail assemblies.
Torx T20 screwdriver Aach rail assemblies to the
v
ertical channels and secure
hardware components to the
rails.
Torx T30 screwdriver Connect two racks.
Wire cuers Cut tie wraps.
Note: These tools are not included with the Oracle Flash Storage System.
Rack Safety Precautions
Follow these safety precautions when installing the components in the rack.
Caution
: If non-Oracle FS System equipment must be installed in the rack,
additional care must be taken to ensure that this equipment does not cause
overheating of the Oracle FS System components or block air ow. All Oracle FS
System components meet these requirements, but ONLY if the installation and
rack position guidelines are carefully followed.
Caution: Always load components into a rack from the boom to the top so that
the rack does not become top-heavy and tip over.
Caution: Avoid elevated operating ambient temperature. If the component is
installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment might be greater than room ambient
temperature. Therefore, make sure that the environment is compatible with the
maximum ambient temperature (TMA) specied for the component.
Caution: Make sure that there is sucient amount of airow required for safe
operation of each component.
Caution: Mounting of a component in the rack should be such that a hazardous
condition is not created due to uneven mechanical loading.
Caution: Consideration should be given to the connection of a component to the
supply circuit and the eect that overloading of the circuits might have on over-
current protection and supply wiring. Appropriate consideration of component
nameplate power ratings should be used when addressing this concern.
Introduction to Oracle FS1-2 System Service Procedures
32
