7 Insert and fully tighten one Phillips 13mm head hex ange screw through
the back of the rack and into the rail.
8
Tighten the two locking screws in the side of the rail.

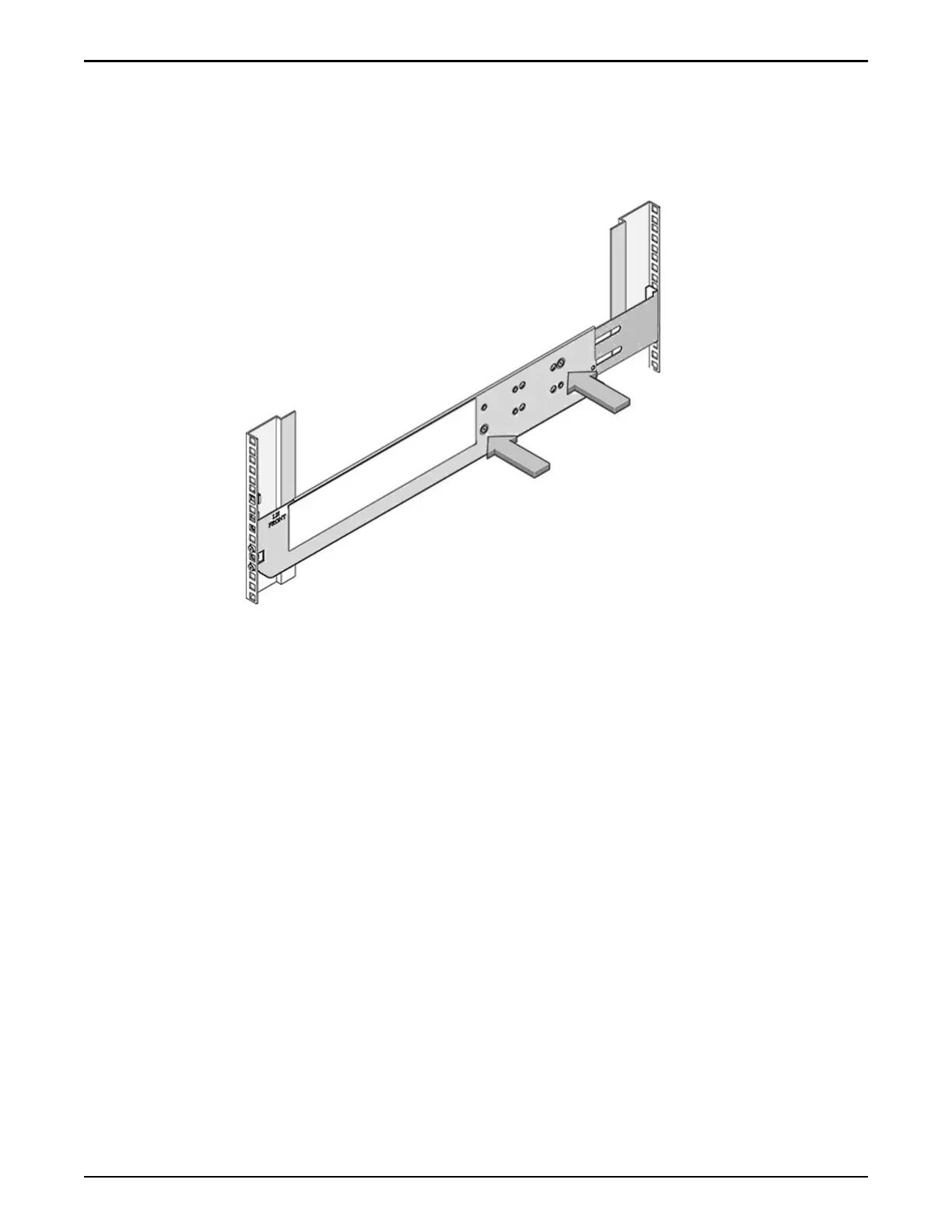

Figure 43: The locking screws and side of the rail
9 Repeat steps 1 - 8 to install the right-hand rail assembly.
Insert a DE2-24P Drive Enclosure Into a Rack
1
Carefully lift the Drive Enclosure to the location of the prepared slot and
rest the Drive Enclosure on the boom ledge of the left and right rails.
Caution:
•
The DE2-24C Drive Enclosure weighs approximately 102 lbs (46 kg).
The DE2-24P Drive Enclosure weighs approximately 53 lbs (24 kg).
Use a mechanical lift when handling fully populated Drive
Enclosures.
•
If you are working alone or you do not have access to a mechanical
lift, you can reduce the weight of a Drive Enclosure by removing the
drives, the I/O modules, and the power cooling modules from the
chassis. An empty DE2-24C Drive Enclosure chassis weighs
approximately 20 lbs (9.07 kg). An empty DE2-24P Drive Enclosure
chassis weighs approximately 15.6 lbs (7.07 kg).
•
The reduced weight enables one person to handle an empty Drive
Enclosure chassis. If you are not comfortable managing the weight of
the chassis, request help from the local account team.
•
Be careful not to drop a Drive Enclosure. Dropping a Drive
Enclosure can cause damage and can reduce the life of the drives.
Oracle FS1–2 Global Procedures
75
